Mini Sumo with Remote Control
Source: Thingiverse by RobFis
The Mini Sumo with Remote Control is a free printable 3D model from Thingiverse by RobFis. I modified the SketchUp Mini Sumo. You can download the STL file from the original listing below and print it at home.
About this model

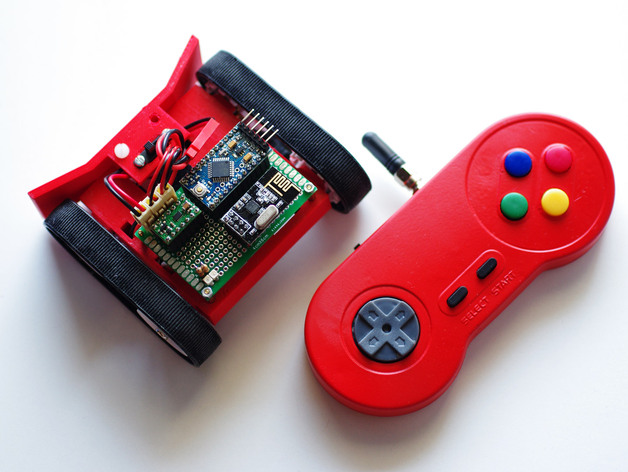

I modified the SketchUp Mini Sumo. The motor holder is much stronger. On my prints the original one always broke due to bad layer bonding. The chassis has holes for 5x7cm proto pcb with M2 stand up and screws. There are also holes for a 2AA battery holder to use two 14500 LiPo. There is also an option to mount a 500mAh-800mAh 2S-LiPo with JST connector. The blade now can fixed with only two M3 screws an nuts. There is also a hole for a small switch. The transmitter was made of an old Nintendo controller. I will post the Arduino code and schematics within the next weeks. Please be patient. Update: Still working on schematics. Added source code for bot and remote. Code is ugly but works :) Partlist: Both (Remote control and robot): Arduino pro min 3.3V 8MHz nRF24L01 Module 2.4GHz RF transcei…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Mini Sumo with Remote Control is free to download from Thingiverse. Click the "Download free STL" button above to open the original listing.
- Where is the STL hosted?
- The download is hosted by Thingiverse, not by Thinger. We link you directly to the original listing by RobFis.
- Who made this model?
- Designed by RobFis, published on Thingiverse. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
