Fan grille assortment with deflectors
Source: Thingiverse by ronschauer
The Fan grille assortment with deflectors is a free printable 3D model from Thingiverse by ronschauer. Here is a small but (hopefully) handy collection of fan grilles and deflectors I have used in various places and at various times on my 3D printer and elsewhere. You can download the STL file from the original listing below and print it at home.
About this model

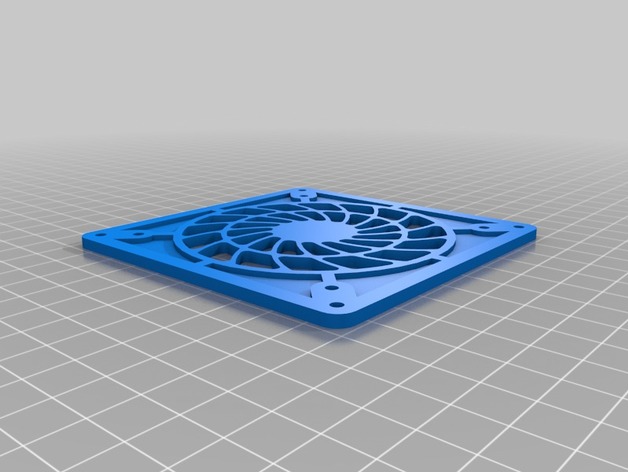

Here is a small but (hopefully) handy collection of fan grilles and deflectors I have used in various places and at various times on my 3D printer and elsewhere. There is nothing particularly special about them except for the "grille1" through "grille5" series . They are designed to mount 80mm fans flush through thick panels by providing extra mounting holes outside the profile of the fans and they hide any rough-cut edges. I have included versions with integral grilles and one for use with a wire grille. I used one of those grilles to sink a fan into the electronics enclosure and another to act as a large exhaust port over the power supply on my FT-5 (see photos). That saved precious interior space by enclosing most of the body of the fan within the thickness of the panel while not protru…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Fan grille assortment with deflectors is free to download from Thingiverse. Open it in the free Thinger app, or use the "Download from Thingiverse" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by Thingiverse, not by Thinger. We link you directly to the original listing by ronschauer.
- Who made this model?
- Designed by ronschauer, published on Thingiverse. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
