Pen Engraver Rotary Axis
Source: Thingiverse by abarton2
The Pen Engraver Rotary Axis is a free printable 3D model from Thingiverse by abarton2. I designed this rotary axis to allow inserting and extracting the pen blanks easily without having to dis-assemble the mandrel. You can download the STL file from the original listing below and print it at home.
About this model

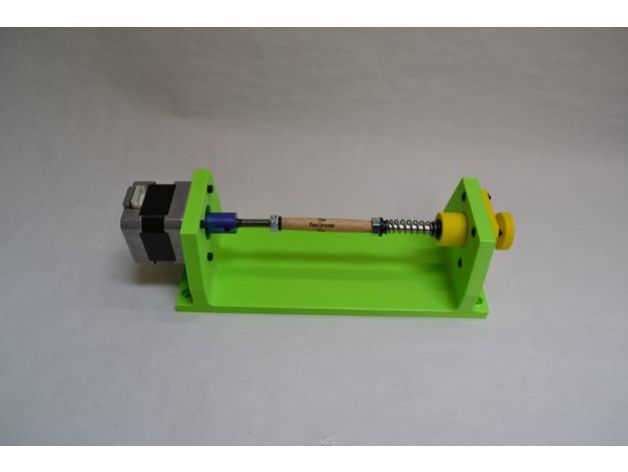

I designed this rotary axis to allow inserting and extracting the pen blanks easily without having to dis-assemble the mandrel. The spring-loaded idler allows for this operation. I hope the assembly document is sufficiently clear. This model has been tested on a converted Anet A8 laser engraver and fits well on the build surface and within reach of the laser module. The stepper for the rotary hooks into the Y axis of the controller board. Lightburn software is recommended if your laser engraver is supported. Please use all necessary precautions to stay safe while using any laser engraver.
