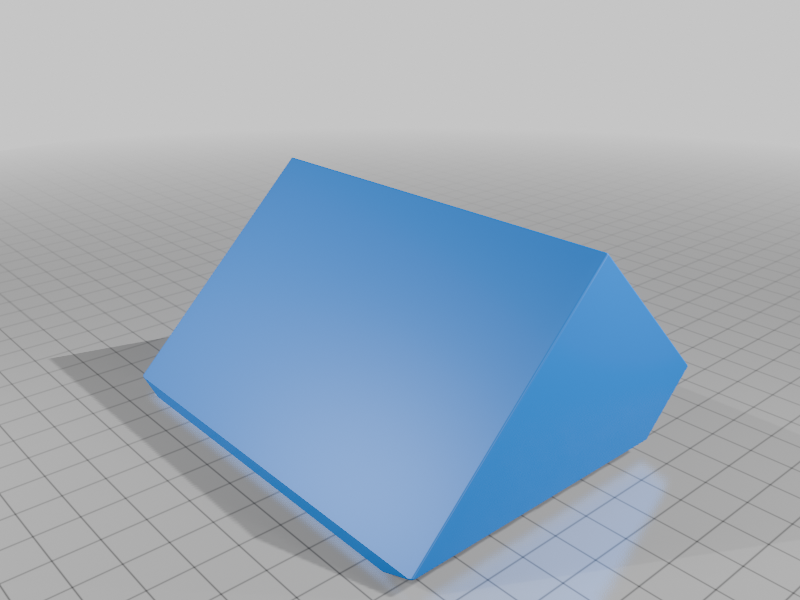

Dell/Alienware Laptop Power Meter Box (Remix)
Source: Cults3D by grittyKitty
The Dell/Alienware Laptop Power Meter Box (Remix) is a free printable 3D model from Cults3D by grittyKitty. First and foremost... You can download the STL file from the original listing below and print it at home.
About this model
First and foremost... BIG thank you to PartsPeople for their support and guidance. === Original design was remastered within OnShape CE. Original design, and this design are organized within TABs in the CAD. This version, called v2 for reference, replaces the 7.4mm jack IN and the two cabled OUT, for two(2) female 5.5x2.1mm barrel jacks. I have a box kit of male-to-male adapters that fit the 5.5x2.1 standard. Alternatively, you could use 5.5x2.5mm female barrel jacks. Using this standard along with a couple adapter cables allows me to connect the power box to alternative power supply sources, and adapt output to needs. Example parts include... DC022B 5.5 x 2.1mm DC Power Jack Supply Socket 3.5x1.3 DC Female Panel Mount Connector Plug Adapter 5.5*2.5MM 2 Pin 7.4*5.0mm DC Power Plug Chargabl…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Dell/Alienware Laptop Power Meter Box (Remix) is free to download from Cults3D. Open it in the free Thinger app, or use the "Download from Cults3D" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by Cults3D, not by Thinger. We link you directly to the original listing by grittyKitty.
- Who made this model?
- Designed by grittyKitty, published on Cults3D. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
