RAK19007 Mounting Plate (150x100x70 Junction Box)
Source: MakerWorld by JAAS
The RAK19007 Mounting Plate (150x100x70 Junction Box) is a free printable 3D model from MakerWorld by JAAS. A mounting plate for installing a RAK19007 WisBlock base board inside a standard 150x100x70mm weatherproof junction box. You can download the STL file from the original listing below and print it at home.
About this model

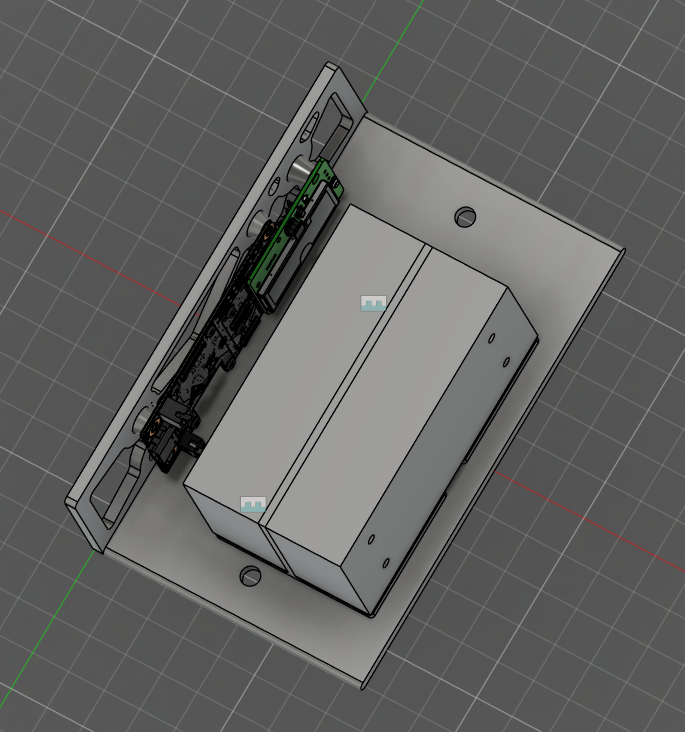

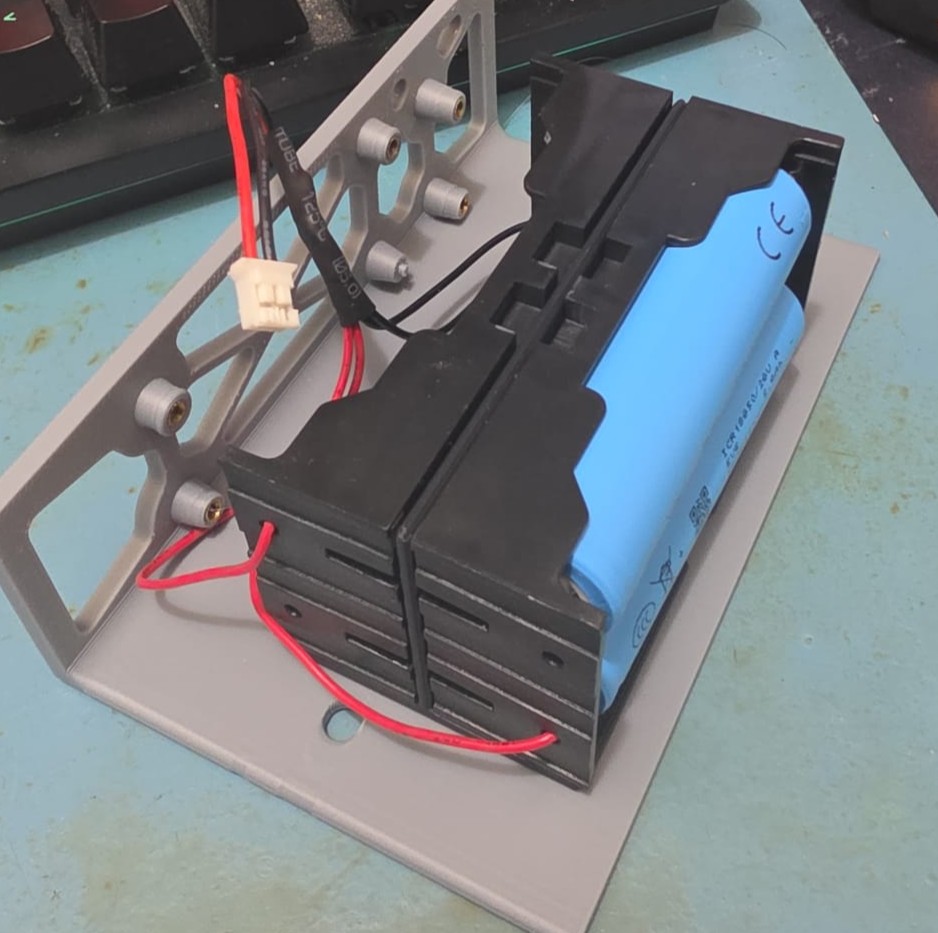

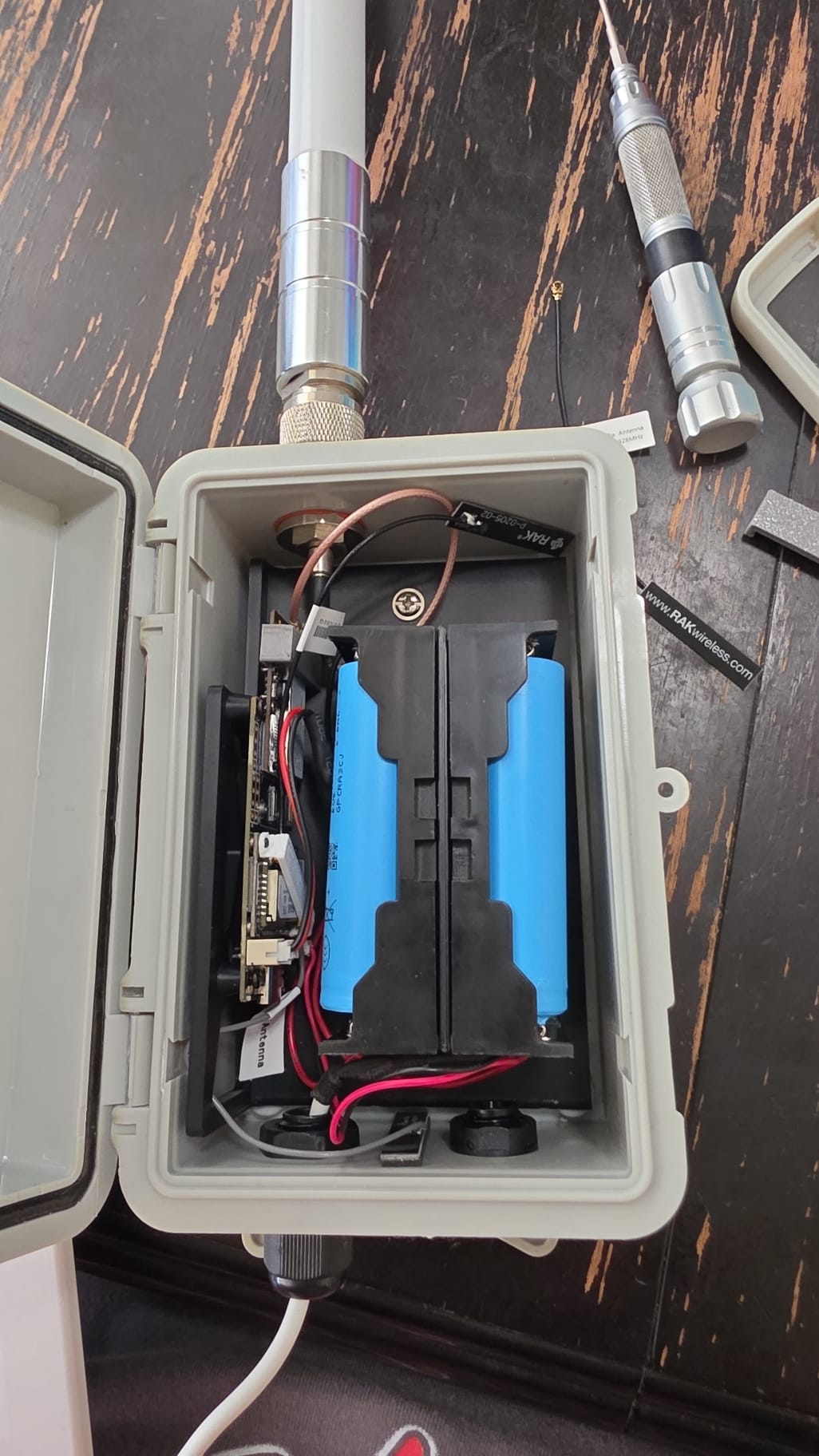

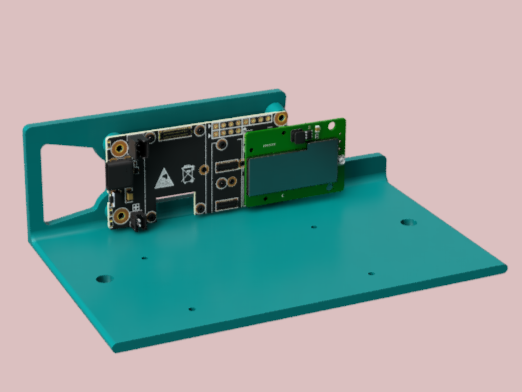

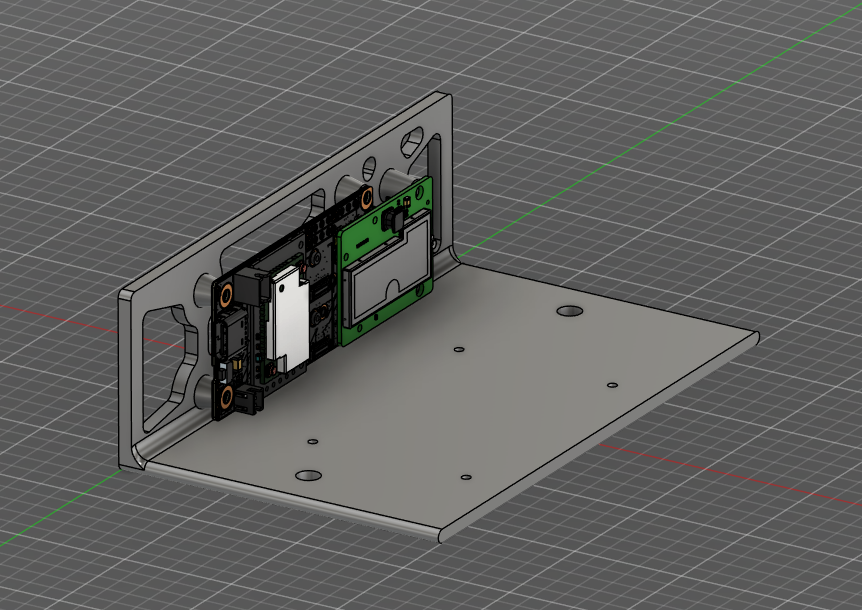

A mounting plate for installing a RAK19007 WisBlock base board inside a standard 150x100x70mm weatherproof junction box. Designed for outdoor LoRa/Meshtastic/MeshCore nodes running on solar + battery power. You can pair this plate with the 18650 2 Slot Battery Holder Stacker, which stacks two standard 2-cell 18650 holders vertically giving you 4x 18650 cells in a compact 2x2 block instead of a wide 1x4 row. Mounting holes align with the junction box's internal screw bosses, with clearance for the U.FL antenna pigtail and cable glands. It's a tight fit and you need to plan the order of assembly, specially if going with the 4 batteries, but it's doable and results in a nice and small node. Pics are from different iterations (forgot to take pic fo the final ASA version before installing it on…
