Ceiling Vent 13 1/4 x 7 1/4 Adjustable Fins
Source: MakerWorld by is
The Ceiling Vent 13 1/4 x 7 1/4 Adjustable Fins is a free printable 3D model from MakerWorld by is. Replacement ceiling air register for a standard 12" x 6" duct opening. You can download the STL file from the original listing below and print it at home.
About this model

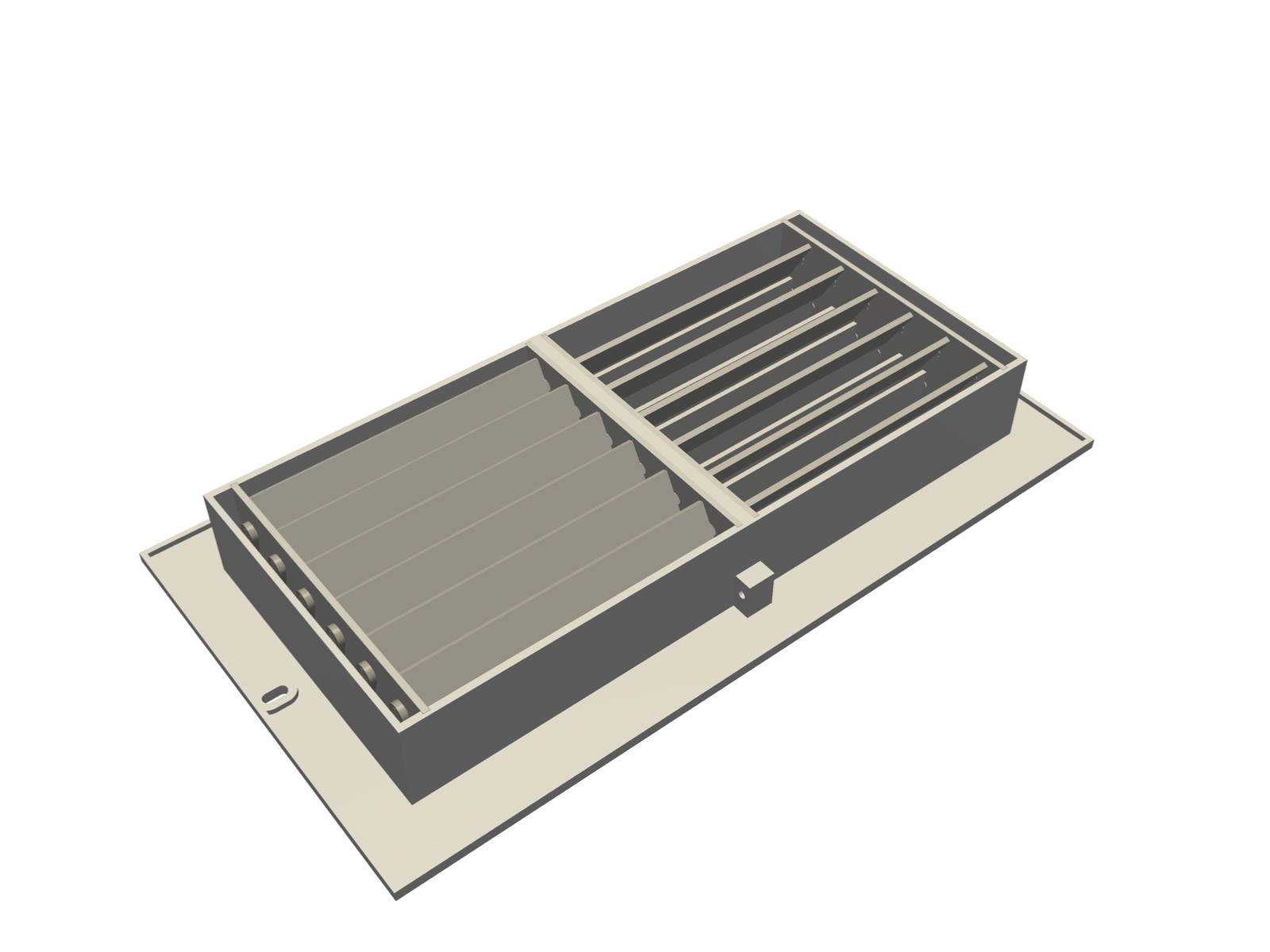

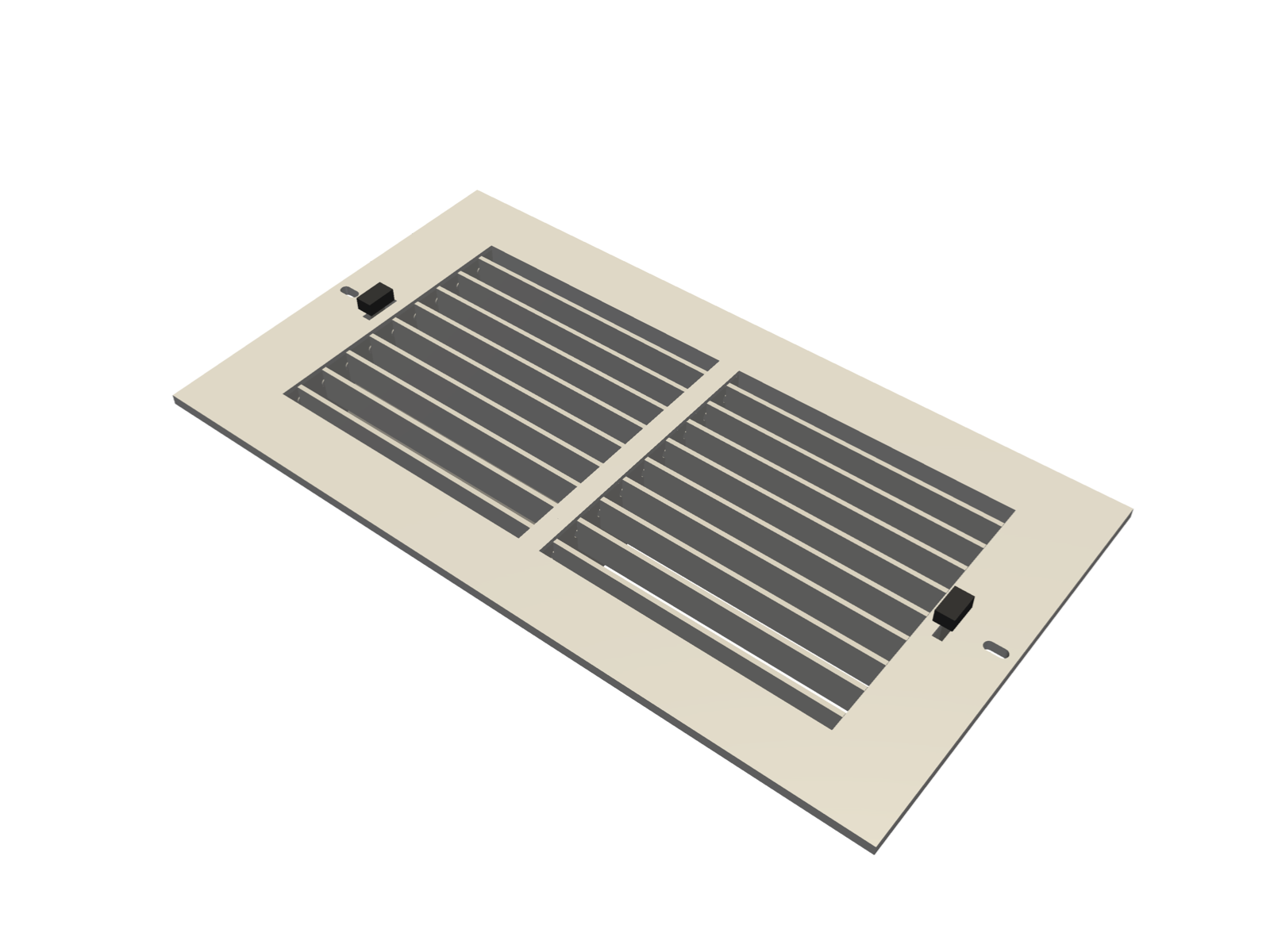

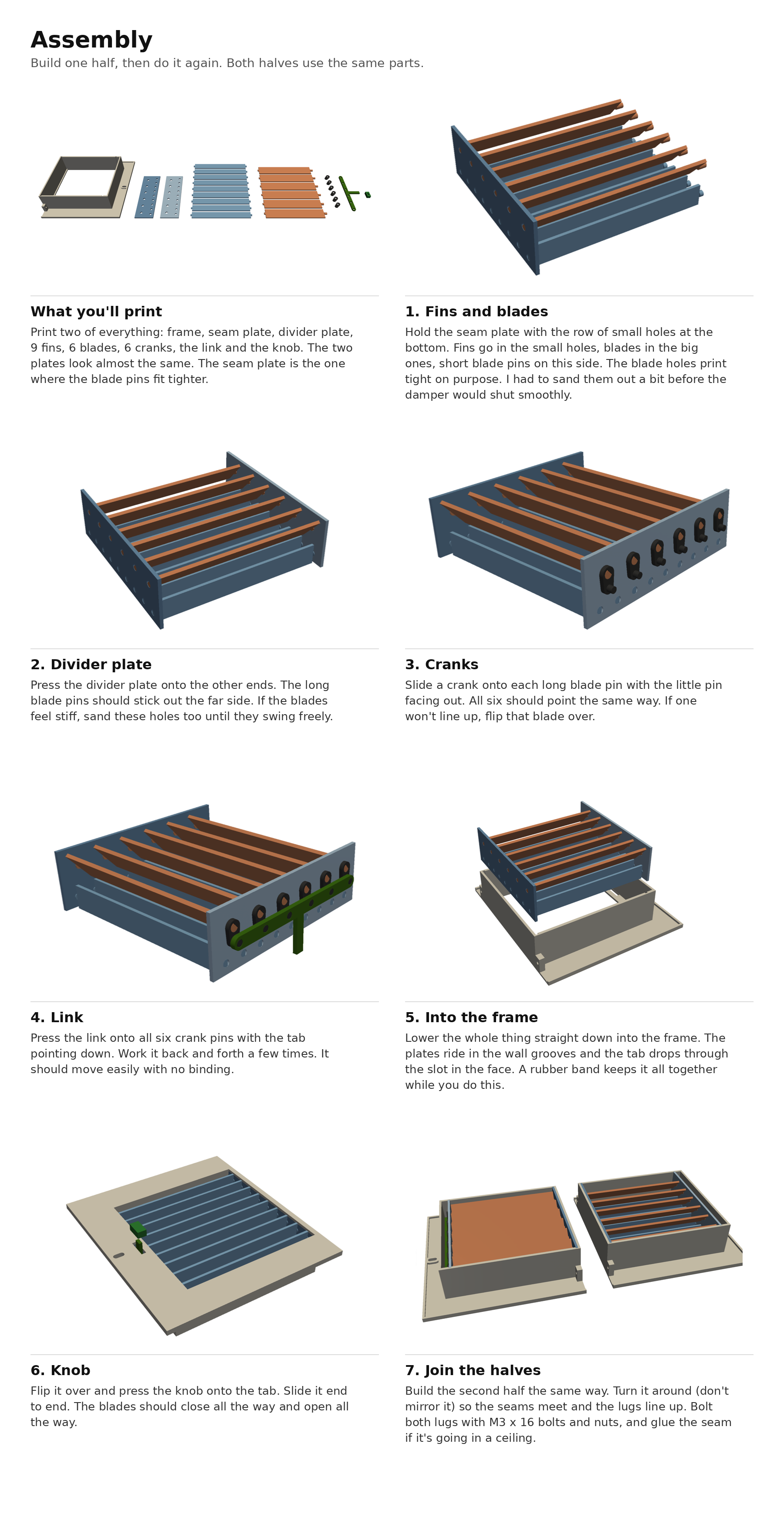

Replacement ceiling air register for a standard 12" x 6" duct opening. Overall face is 13-1/4" x 7-1/4" (336.6 x 184.2 mm), the same size as common steel 12x6 sidewall/ceiling registers. Shut off lever broke off my metal original, I love having the AC on, others didn't because they couldn't control their vent and we had no money at the moment. The solution.FeaturesShutoff: 6-blade rear damper in each half, controlled by a sliding knob in the face (about 10 mm of travel from open to closed)Direction: 9 front fins per half, tilted individually by hand and held by friction pinsSplit into two identical halves so it fits a 256 x 256 mm bed. Print 2 of every file.Neck is 11-1/2" x 5-1/4" and extends 1.48" (37.5 mm) above the ceiling line. Check that your duct boot has that much clearance.Screw s…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Ceiling Vent 13 1/4 x 7 1/4 Adjustable Fins is free to download from MakerWorld. Open it in the free Thinger app, or use the "Download from MakerWorld" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by MakerWorld, not by Thinger. We link you directly to the original listing by is.
- Who made this model?
- Designed by is, published on MakerWorld. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
