Gabarit tourillons ajustable / Doweling jig
Source: MakerWorld by Lolo
The Gabarit tourillons ajustable / Doweling jig is a free printable 3D model from MakerWorld by Lolo. SummaryUn gabarit pour pouvoir poser des tourillons de 8mm avec précision aussi bien en angle (ou en T) ou à plat (ou bord à bord).Nécessite un insert dans le trou central pour. You can download the STL file from the original listing below and print it at home.
About this model

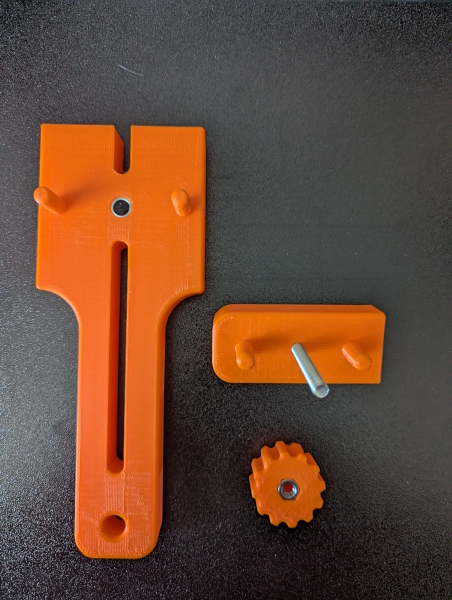

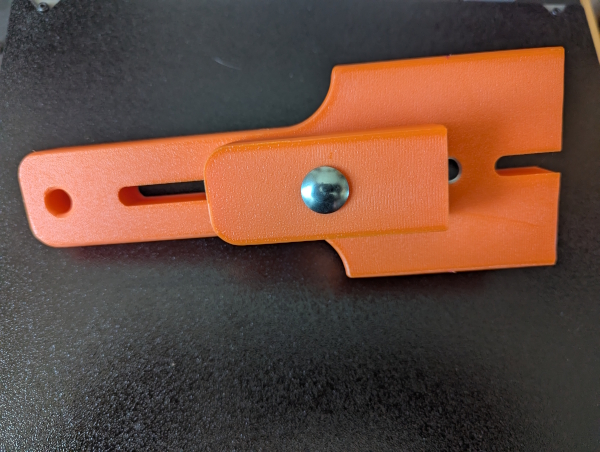

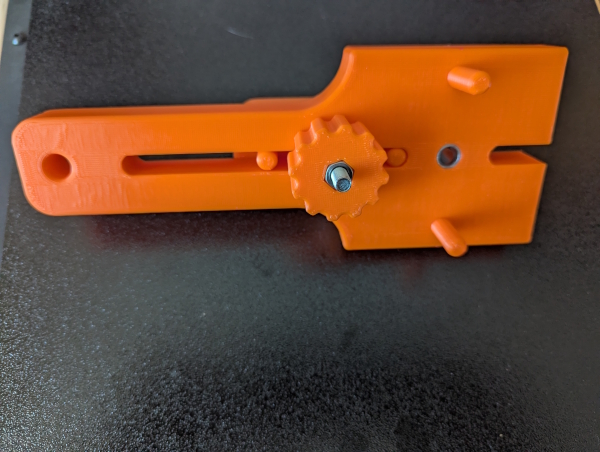

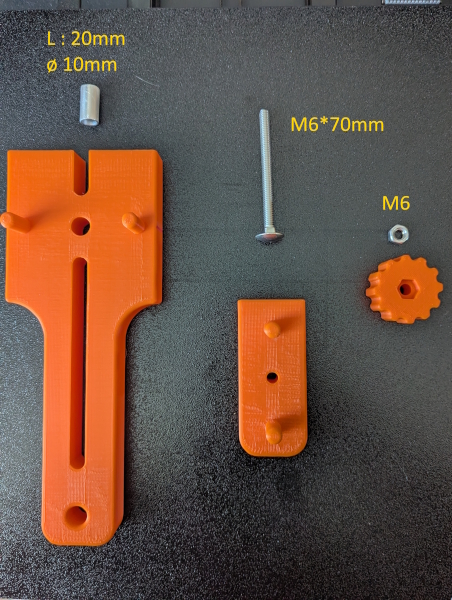

SummaryUn gabarit pour pouvoir poser des tourillons de 8mm avec précision aussi bien en angle (ou en T) ou à plat (ou bord à bord).Nécessite un insert dans le trou central pour protéger la pièce lors de l'utilisation de la perceuse.Tube alu ou acier : diamètre extérieur 10mm, diamètre intérieur 8mm, longueur 20mm.Pour la cale et le bouton : boulon M6*70.--Adjustable doweling jigA jig for accurately positioning 8mm dowels, whether for corner (or T-shaped) joints or flat (edge-to-edge) joints.Requires an insert in the central hole to protect the workpiece during drilling.Aluminum or steel tube: 10mm outer diameter, 8mm inner diameter, 20mm length.For the spacer block and knob: M6x70 bolt.
