Dust cap bearing shield 1K0505491 for SKODA
Source: MakerWorld by Veryashi
The Dust cap bearing shield 1K0505491 for SKODA is a free printable 3D model from MakerWorld by Veryashi. Rear Wheel Bearing Dust Shield (Bearing Support Plate) VAG 1K0 505 491 for Škoda Octavia (PETG)Functional 3D model of a rear wheel bearing dust shield (support plate), compatible. You can download the STL file from the original listing below and print it at home.
About this model

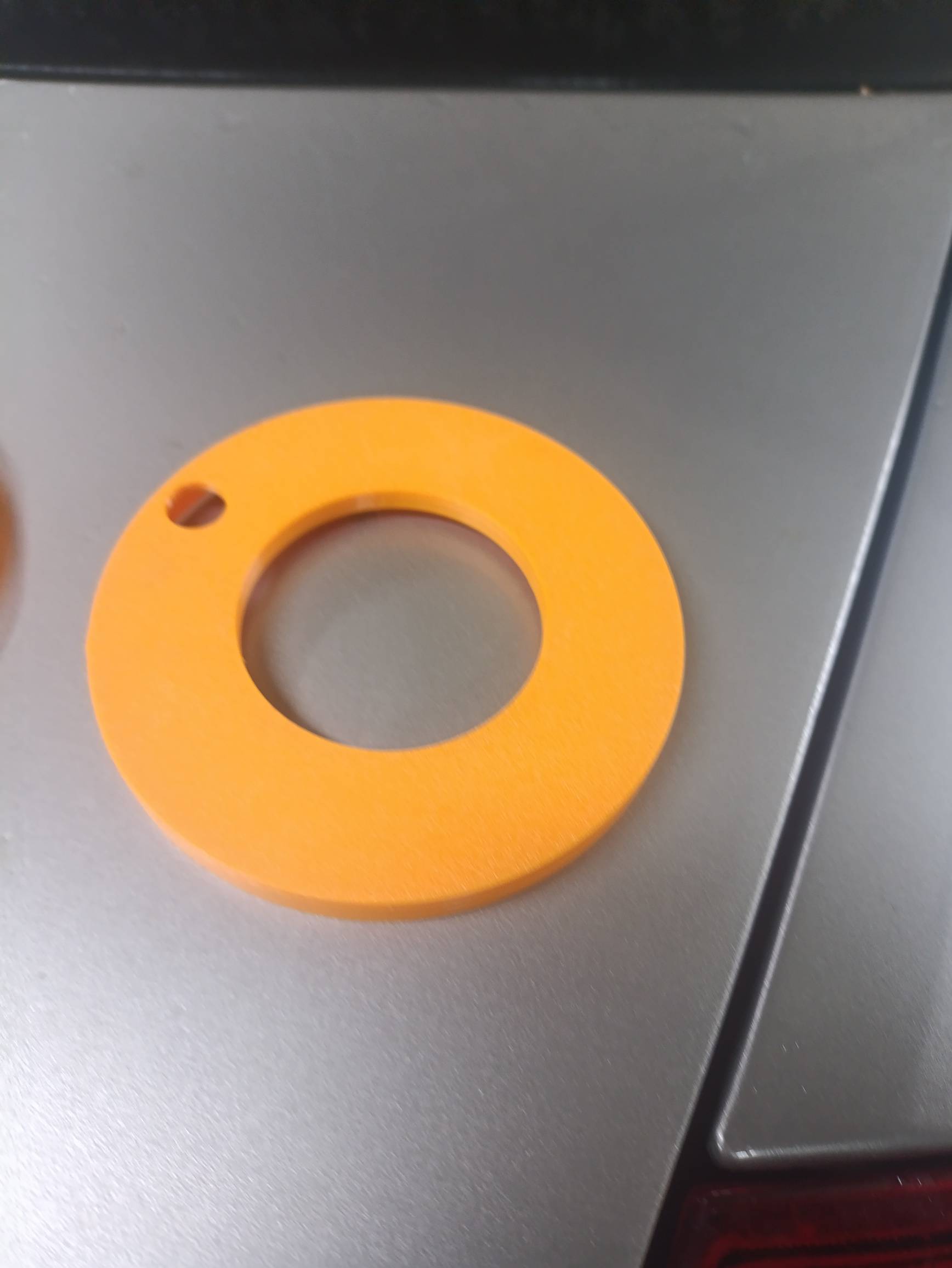

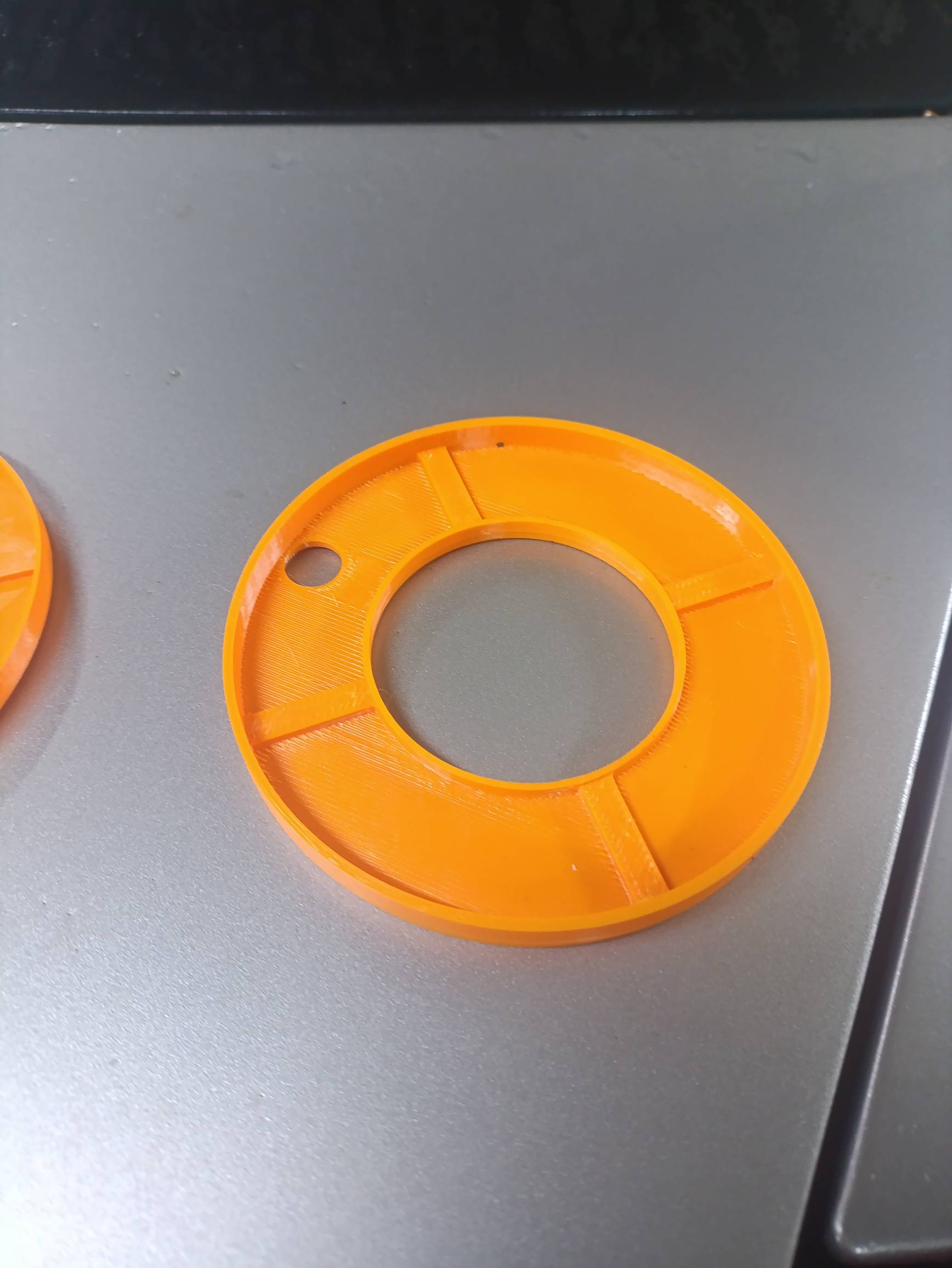

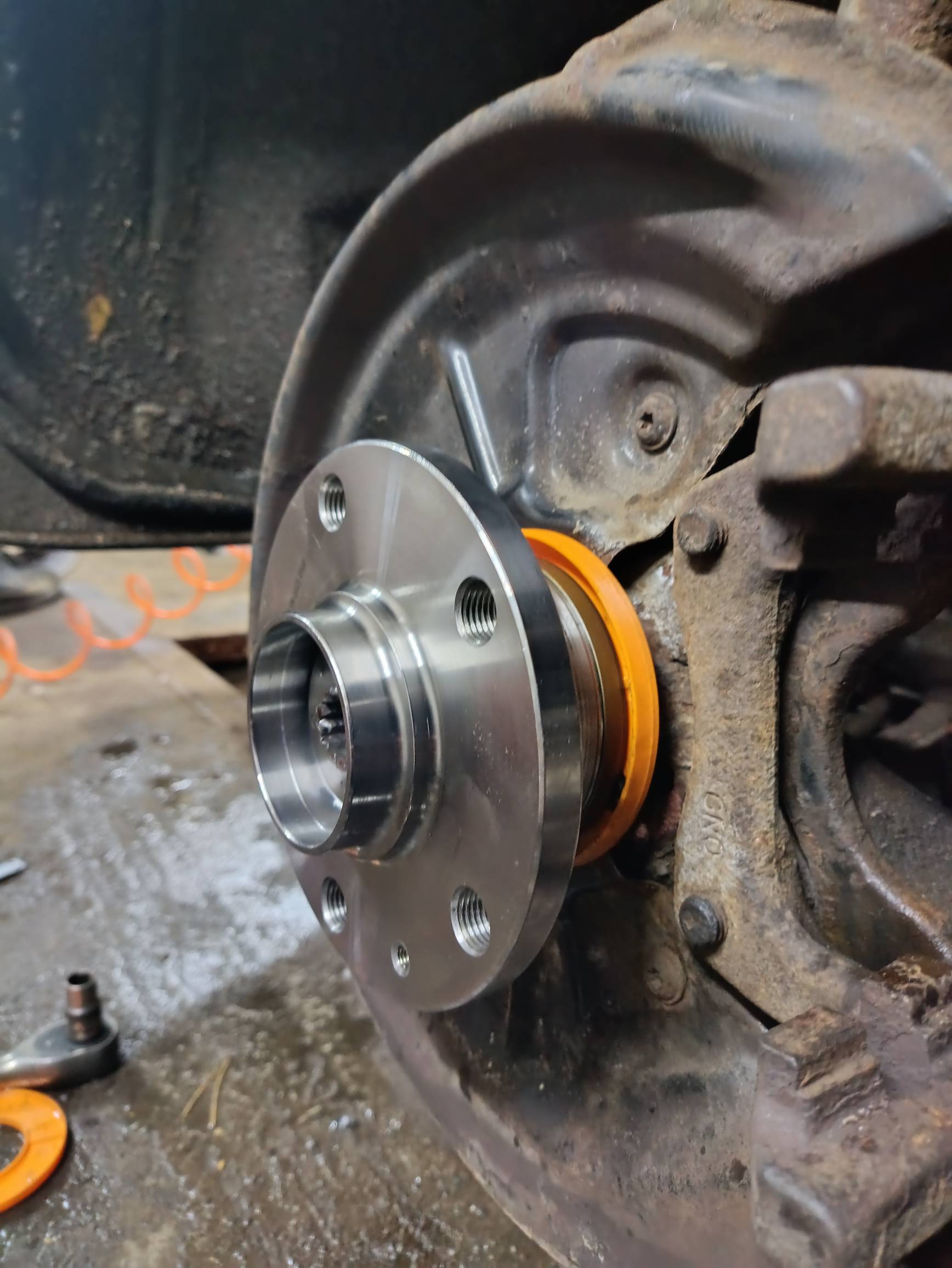

Rear Wheel Bearing Dust Shield (Bearing Support Plate) VAG 1K0 505 491 for Škoda Octavia (PETG)Functional 3D model of a rear wheel bearing dust shield (support plate), compatible with VAG Group vehicles based on the PQ35 platform (Škoda Octavia A5 1Z3/1Z5, VW Golf VI, SEAT Leon II, etc.). The model is printed in PETG and is intended as a replacement for a worn or corroded original part.PurposeThe part is installed on the rear wheel spindle on the brake disc side and performs the following functions:protecting the wheel bearing from dirt, water, snow, and road chemicals;acting as a support / backing plate for the bearing in the rear hub assembly.Original VAG part number: 1K0 505 491.CompatibilityThe model is suitable for VAG vehicles using rear hub part number 1K0 505 491, including:Škoda O…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Dust cap bearing shield 1K0505491 for SKODA is free to download from MakerWorld. Open it in the free Thinger app, or use the "Download from MakerWorld" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by MakerWorld, not by Thinger. We link you directly to the original listing by Veryashi.
- Who made this model?
- Designed by Veryashi, published on MakerWorld. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
