150mm Air Conditioner Hose Pass-Through Connector
Source: MakerWorld by ByteSlinger
The 150mm Air Conditioner Hose Pass-Through Connector is a free printable 3D model from MakerWorld by ByteSlinger. This is a connector for attaching a 150mm portable air conditioner hose to something like a window cover.This allows you to simply push the insert (which you screw onto the end. You can download the STL file from the original listing below and print it at home.
About this model

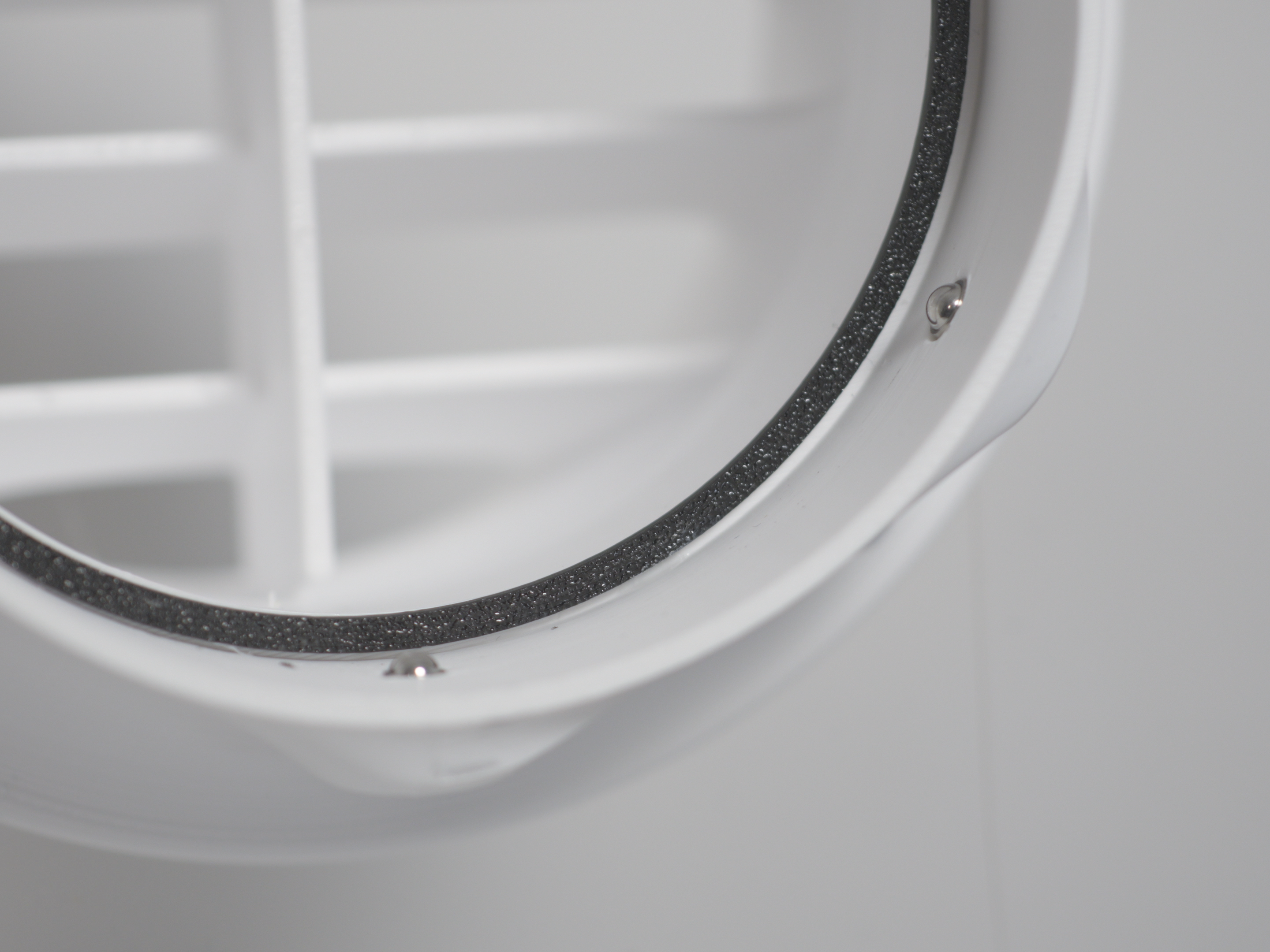

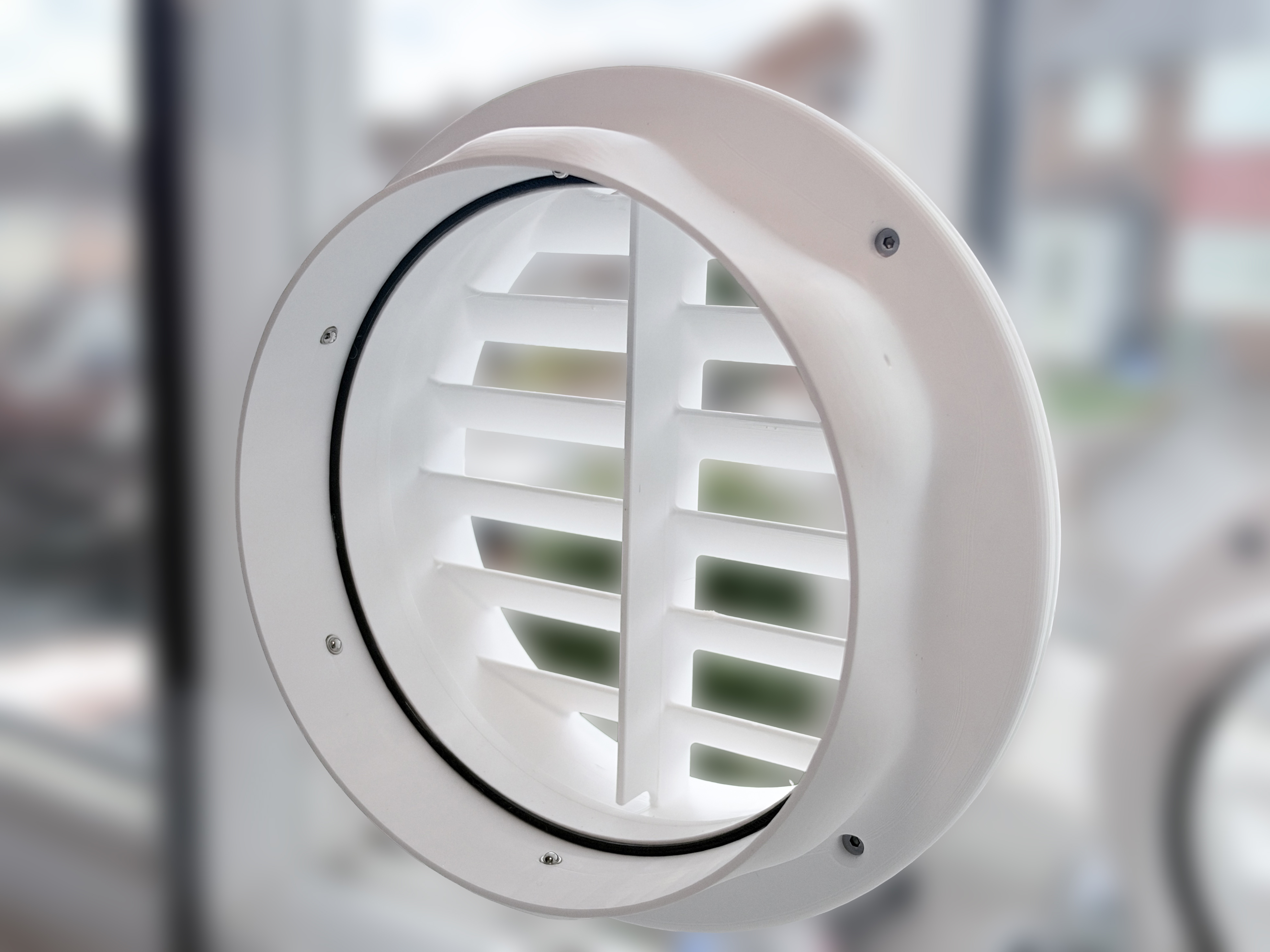

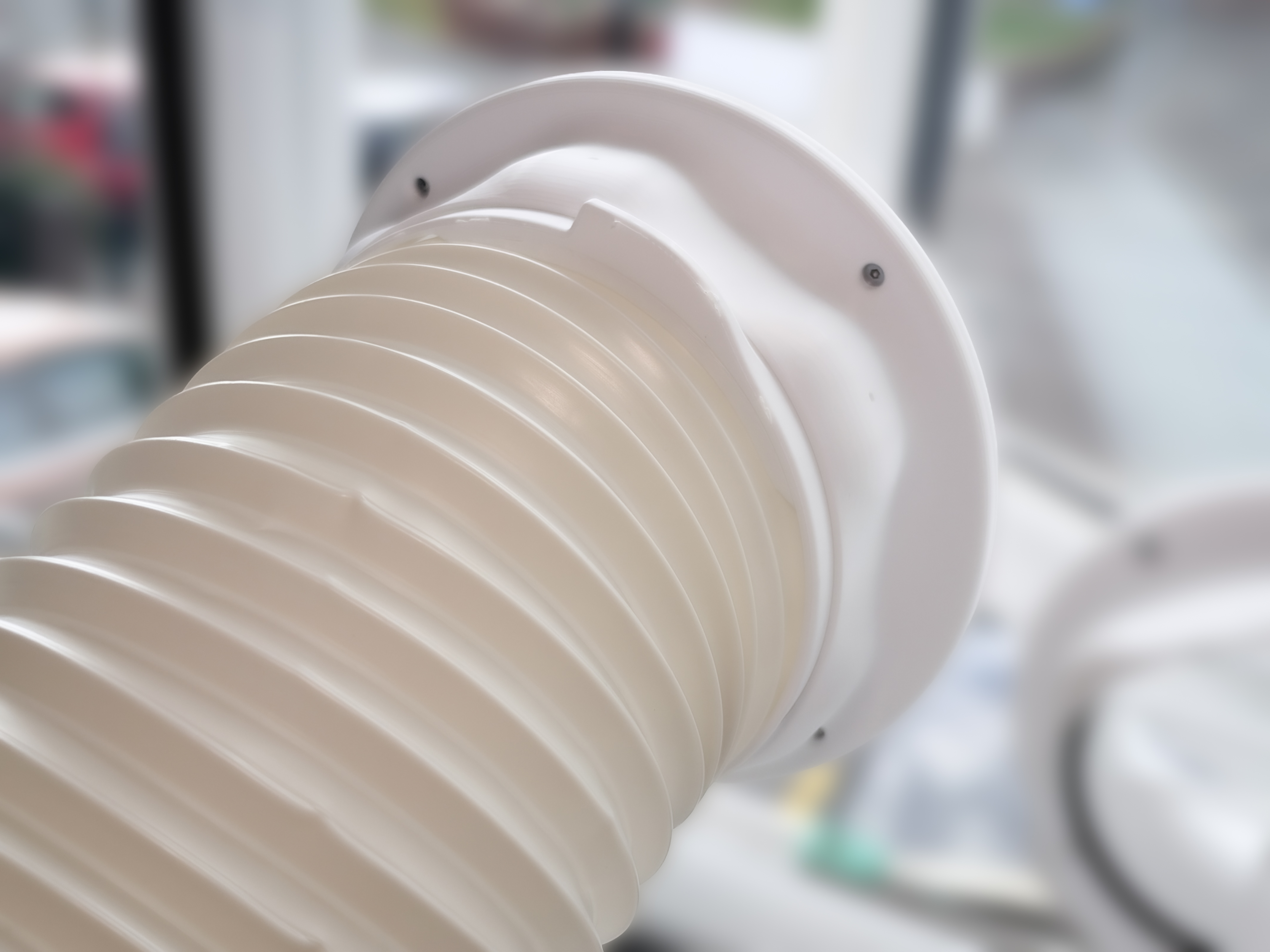

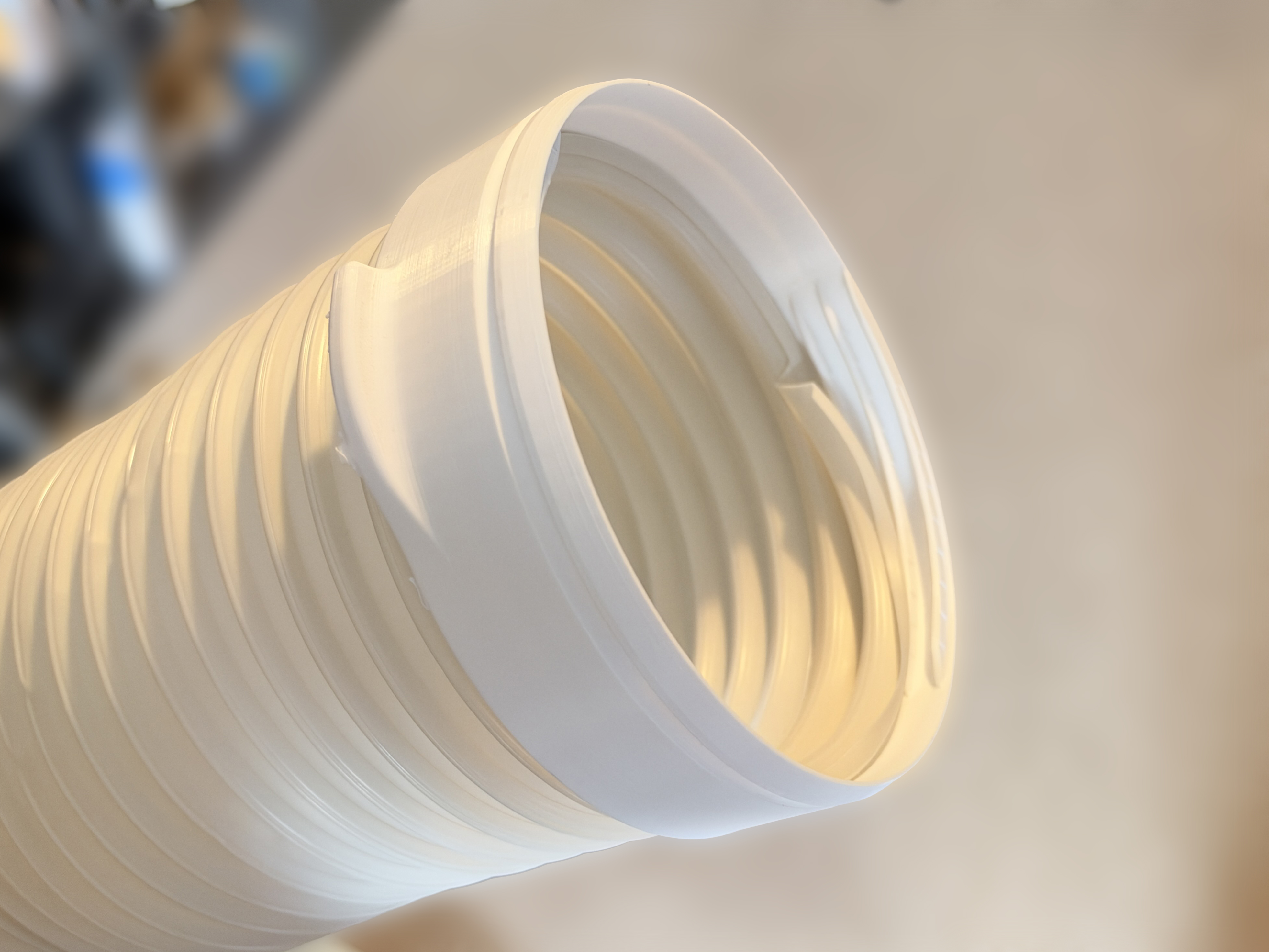

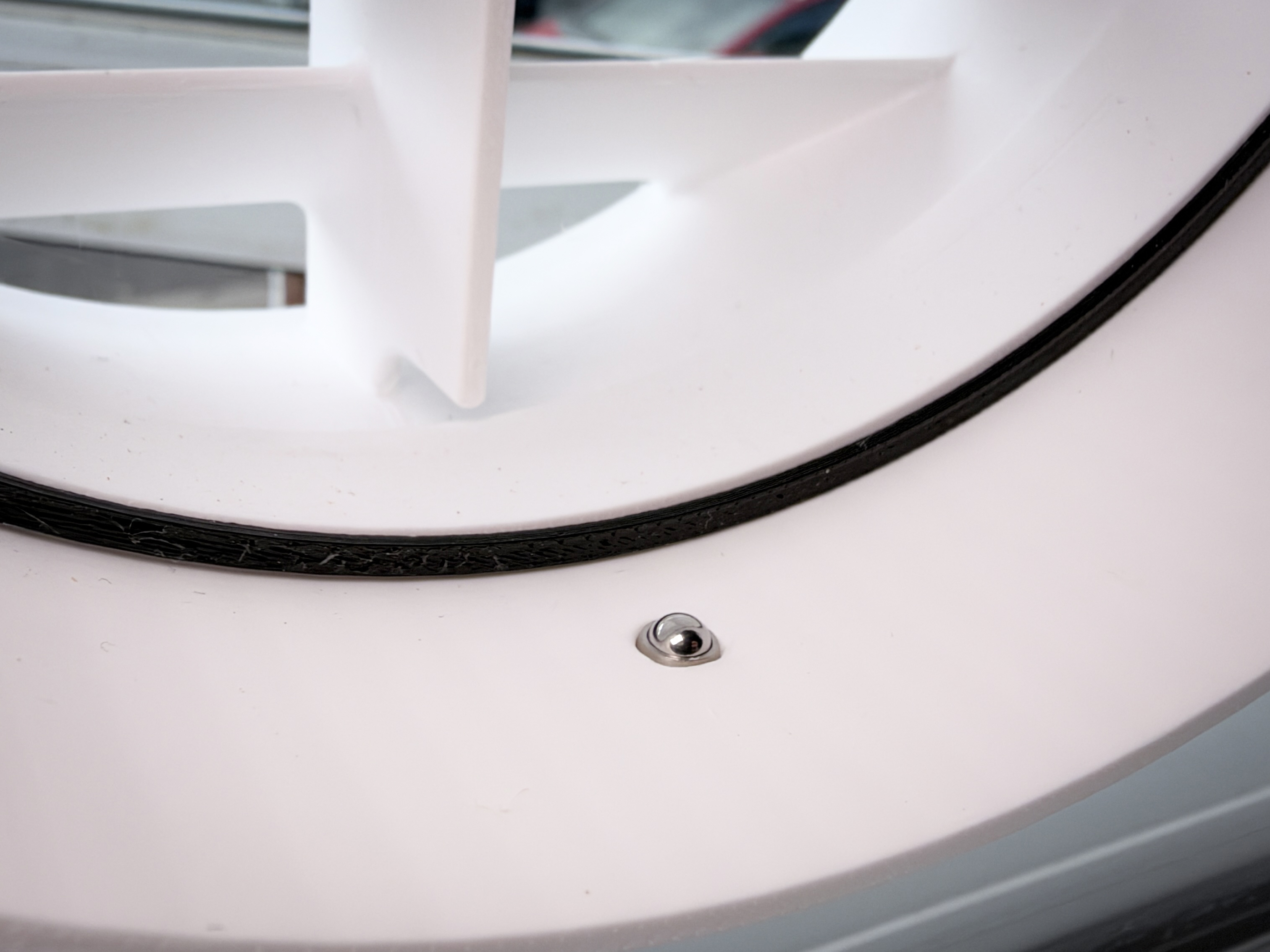

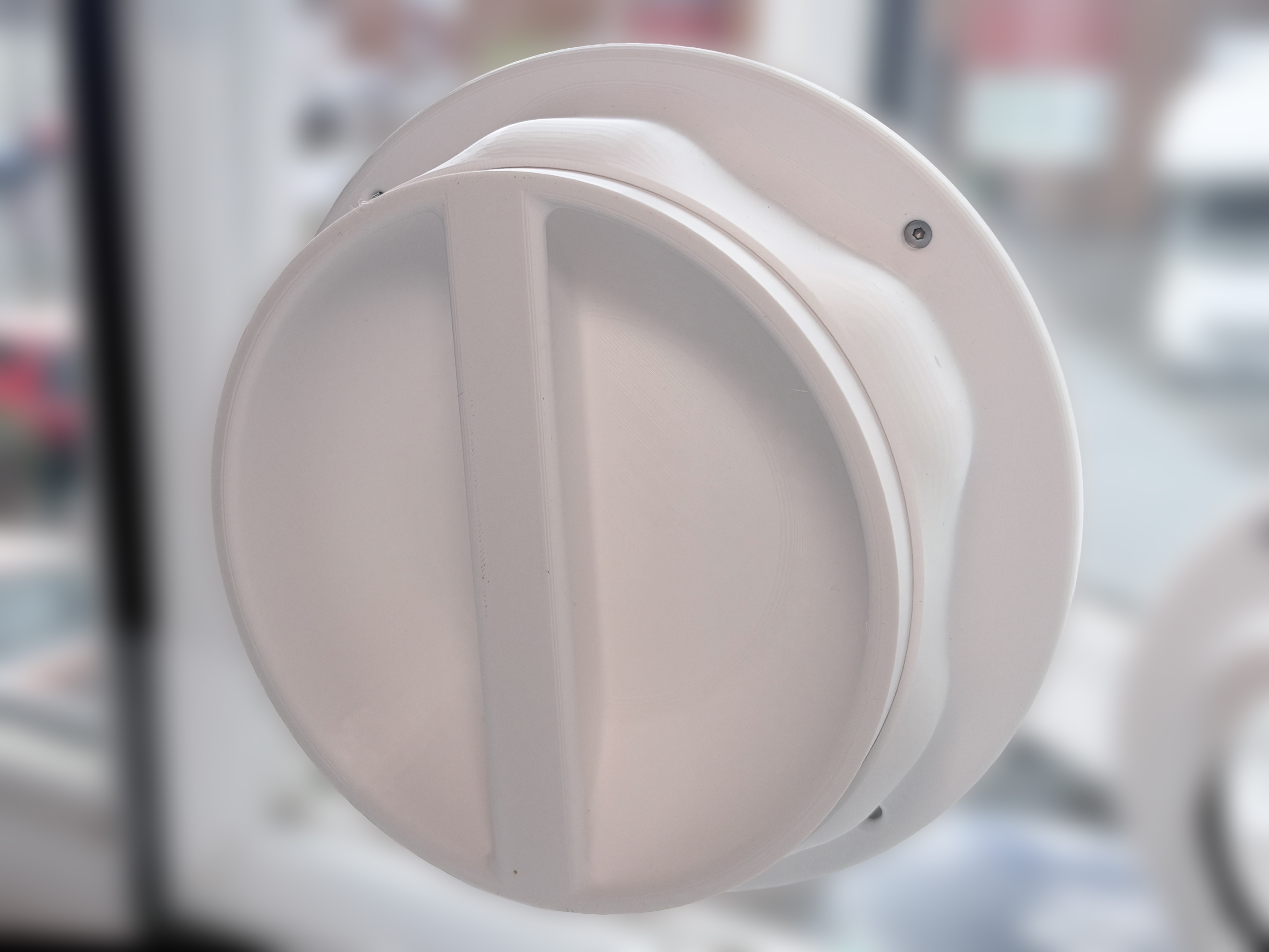

This is a connector for attaching a 150mm portable air conditioner hose to something like a window cover.This allows you to simply push the insert (which you screw onto the end of your compatible 150mm air-con hose) into the mounted port-hole connector, and it is then held in place via sprung balls fitted around the inside rim of the connector.This is the ideal for solution for a window cover, allowing you to easily fit and remove the air-con as you please. To see this in action and to better understand how it works, you can check out a video on it here.Bill of Materials:6x 5x2 Smooth Ball Spring Plungers (one pack from MakerWorld includes 10)4x M3x10 flat head cap machine screws4x M3 Nuts (Note: The nuts must have a width (From side to side, not corner to corner) of between 5.3 and 5.6mm)…
Frequently asked questions
- Is this 3D model free to download?
- Yes. 150mm Air Conditioner Hose Pass-Through Connector is free to download from MakerWorld. Open it in the free Thinger app, or use the "Download from MakerWorld" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by MakerWorld, not by Thinger. We link you directly to the original listing by ByteSlinger.
- Who made this model?
- Designed by ByteSlinger, published on MakerWorld. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
