Tile Alignment Corner Tool – Any Angle & Size
Source: MakerWorld by proocho
The Tile Alignment Corner Tool – Any Angle & Size is a free printable 3D model from MakerWorld by proocho. Boost MeIf you like this mode, please boost it.The 70x70 tile corner tool, now customizable. You can download the STL file from the original listing below and print it at home.
About this model

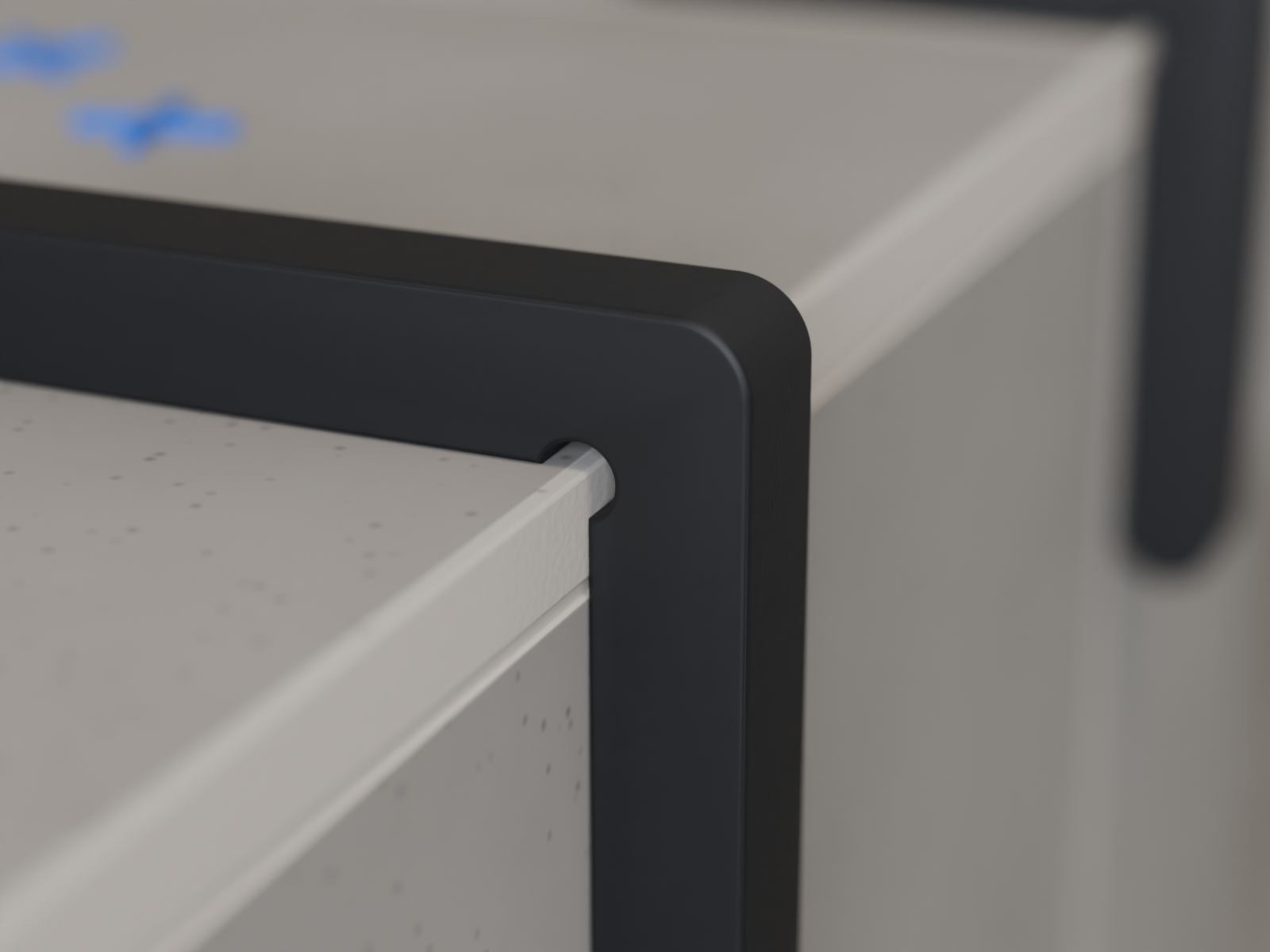

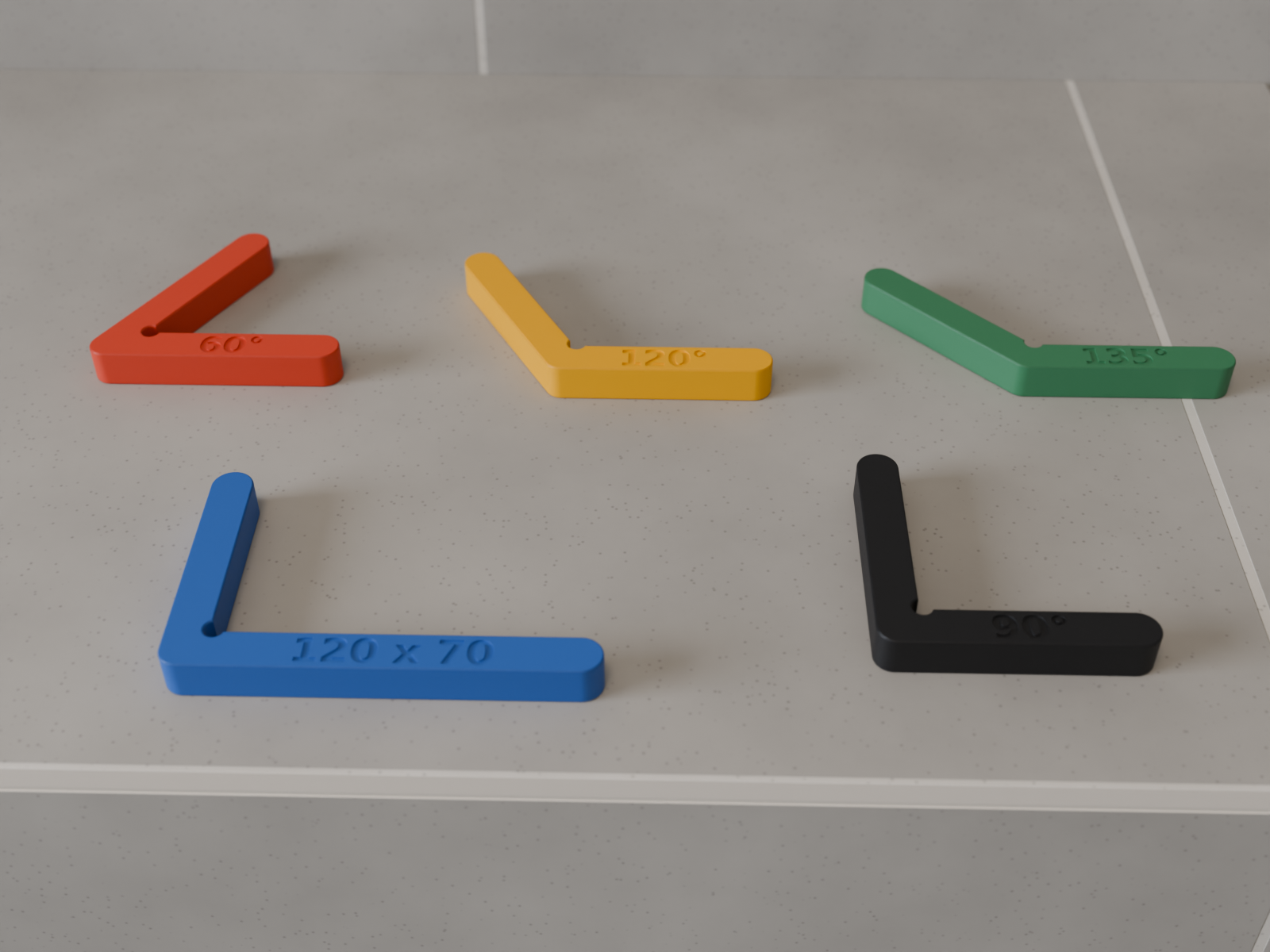

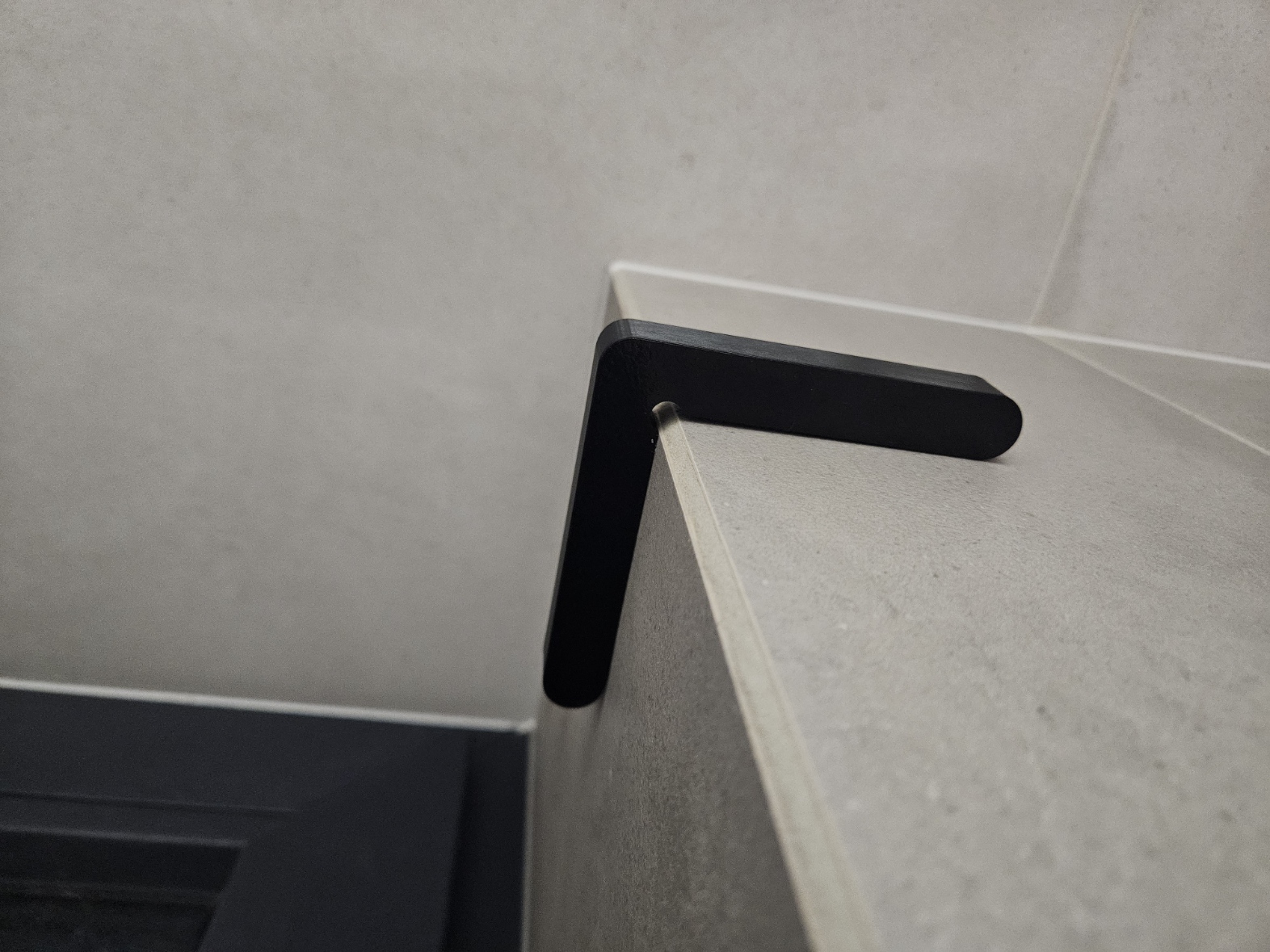

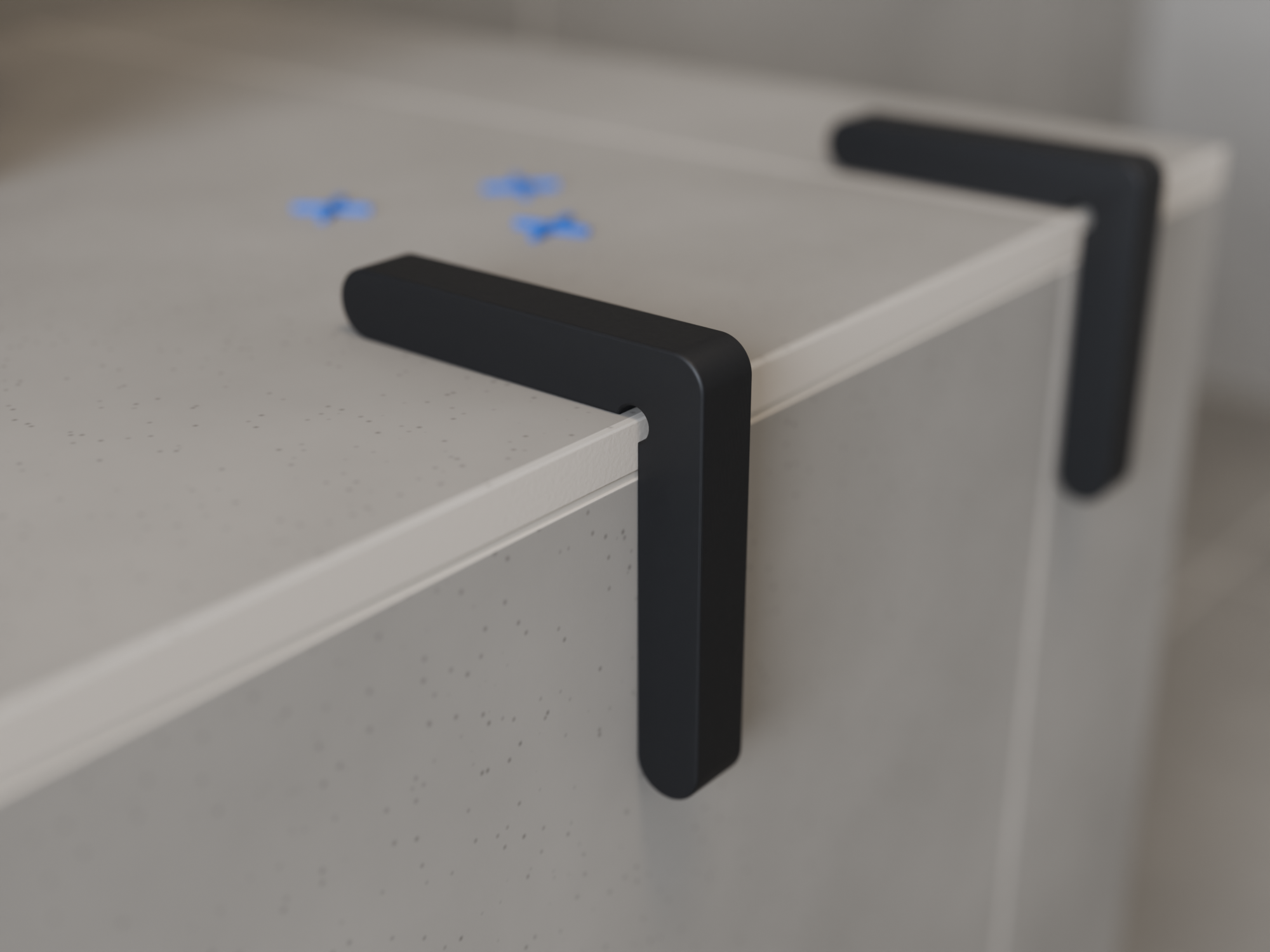

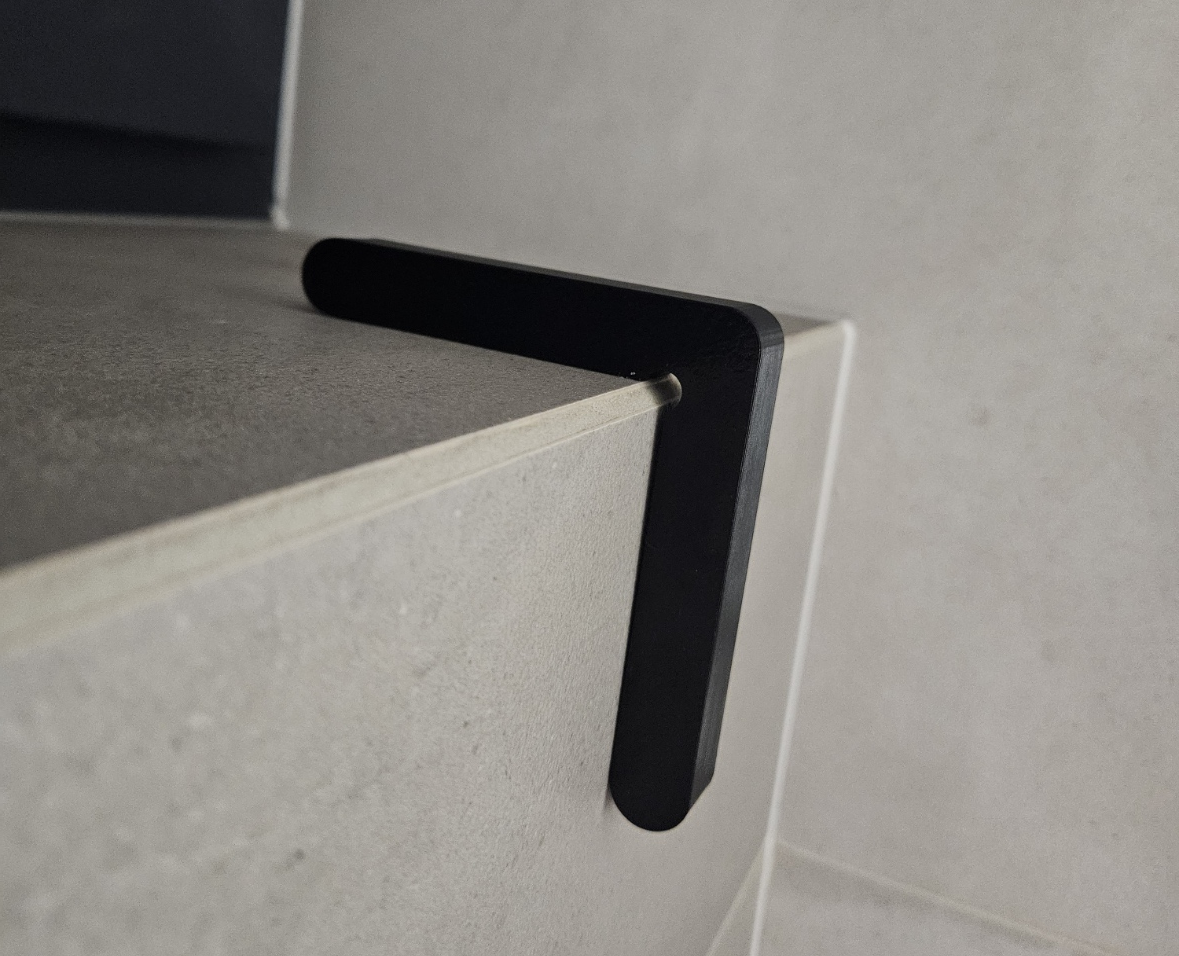

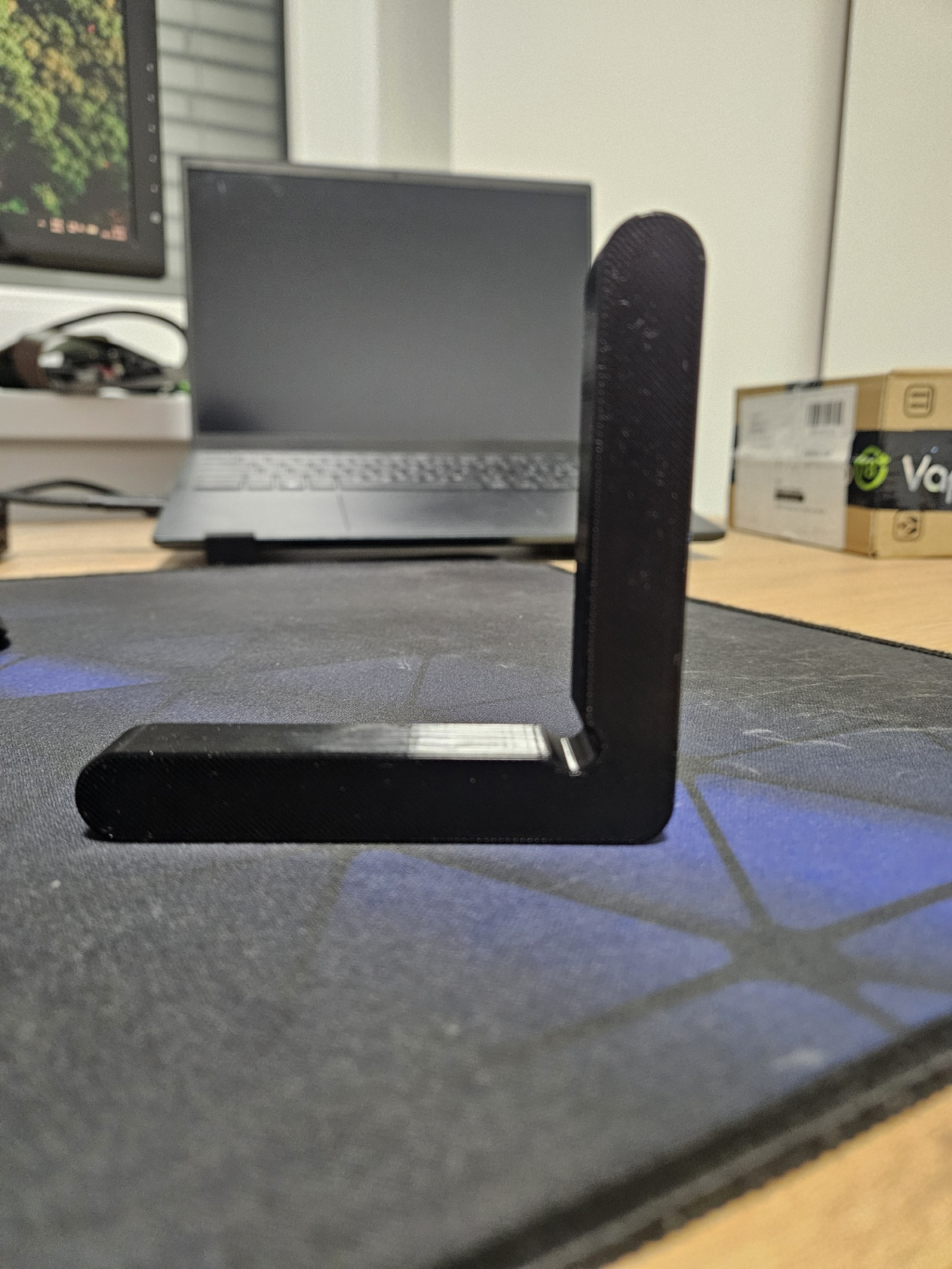

Boost MeIf you like this mode, please boost it.The 70x70 tile corner tool, now customizable. Clamp it over an outside tiled corner and it holds both tiles at the exact angle while the adhesive sets.Open Customize and set:Angle 45–170° – 90° for ledges and steps, 135° for bay walls and octagonal columnsLeg length, arm width and depth – each leg on its ownCorner notch – room for the tile edge and the squeezed-out adhesiveEngraved label and up to 8 nested copies on one plateDefaults are the original 70x70 mm tool. Leg length is the flat inside edge, measured from the corner. Prints flat, no supports – PETG or ABS.
Frequently asked questions
- Is this 3D model free to download?
- Yes. Tile Alignment Corner Tool – Any Angle & Size is free to download from MakerWorld. Open it in the free Thinger app, or use the "Download from MakerWorld" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by MakerWorld, not by Thinger. We link you directly to the original listing by proocho.
- Who made this model?
- Designed by proocho, published on MakerWorld. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
