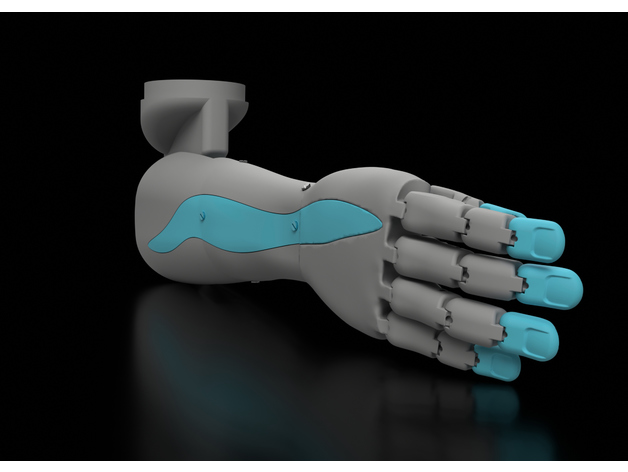

Po Elbow (Beta)
Source: Thingiverse by poparaguay
The Po Elbow (Beta) is a free printable 3D model from Thingiverse by poparaguay. ####Elbow Po In the process of developing a 3D printed prosthesis for transhumeral amputations, we arrived at a solution for the elbow joint, and after some iterations, we. You can download the STL file from the original listing below and print it at home.
About this model
####Elbow Po In the process of developing a 3D printed prosthesis for transhumeral amputations, we arrived at a solution for the elbow joint, and after some iterations, we decided to share it to get some feedback from the community. This elbow module is designed to be fitted to a 3D printed socket (to be designed specifically for each user) and be fastened with screws ( Illustrated in the pictures). The mechanism is basically a gear with a ratchet that locks thanks to a spring. The hand is meant to be positioned manually, and to be operated with opposite shoulder movement by the harness ( still in development). The operating principles is explained in the video. Along with the printable files, we share the public fusion 360 link, where you can find all the parts, understand how we designed…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Po Elbow (Beta) is free to download from Thingiverse. Click the "Download free STL" button above to open the original listing.
- Where is the STL hosted?
- The download is hosted by Thingiverse, not by Thinger. We link you directly to the original listing by poparaguay.
- Who made this model?
- Designed by poparaguay, published on Thingiverse. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
