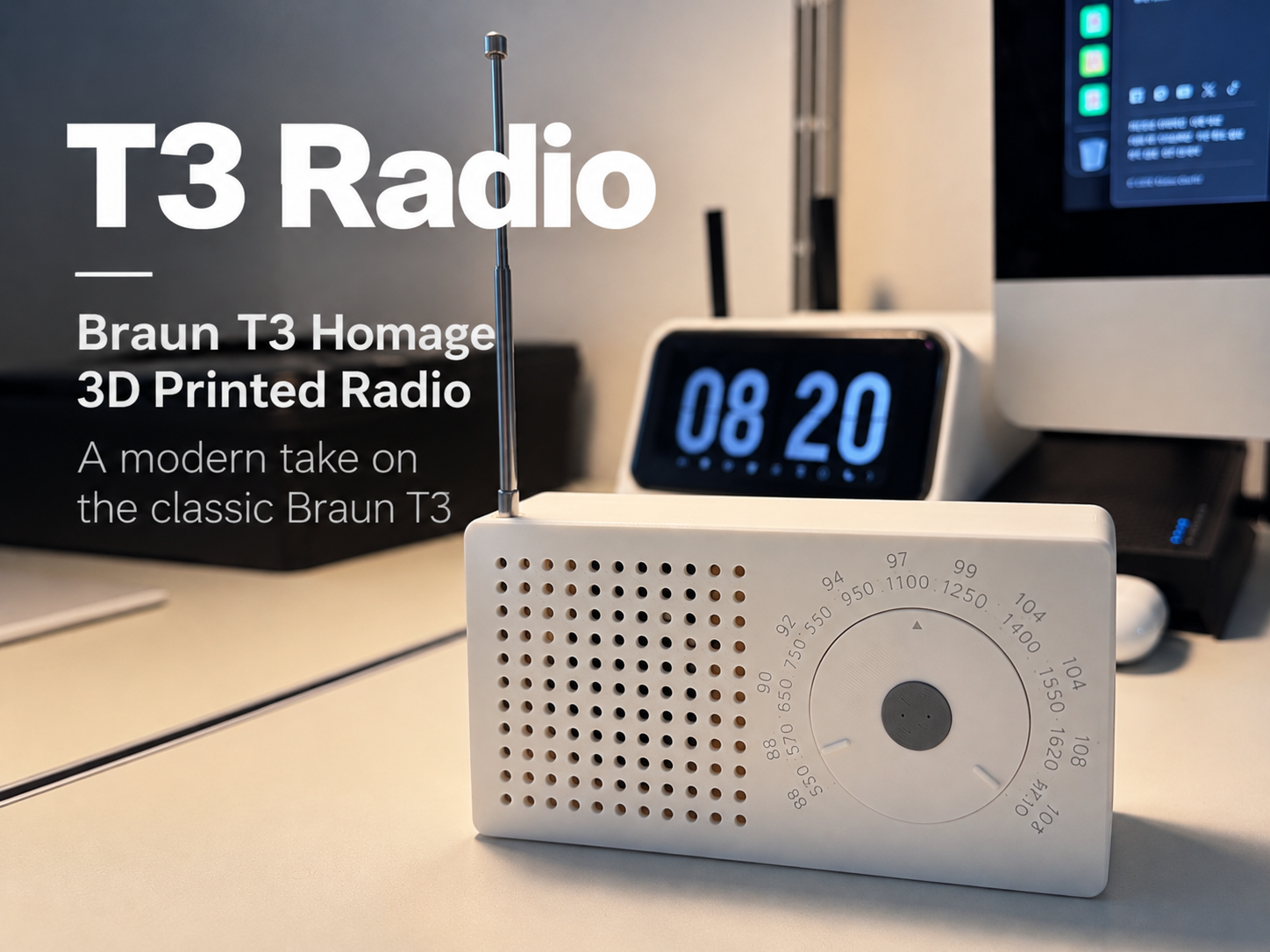

T3 Radio – Braun T3 Homage, 3D Printed Radio
Source: MakerWorld by user_324591362
The T3 Radio – Braun T3 Homage, 3D Printed Radio is a free printable 3D model from MakerWorld by user_324591362. A small homage to Dieter Rams' Braun T3 pocket radio (1958). You can download the STL file from the original listing below and print it at home.
About this model

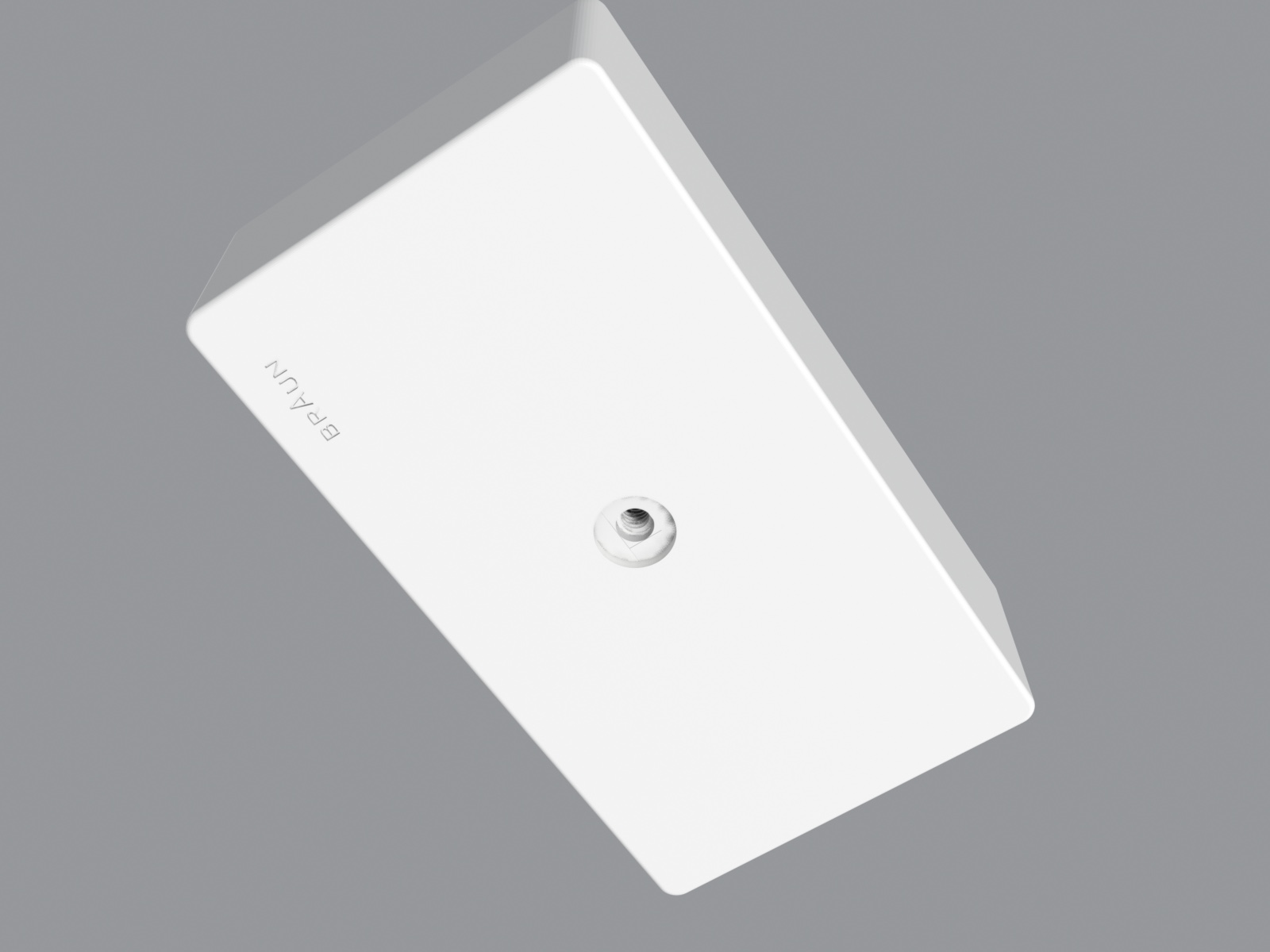

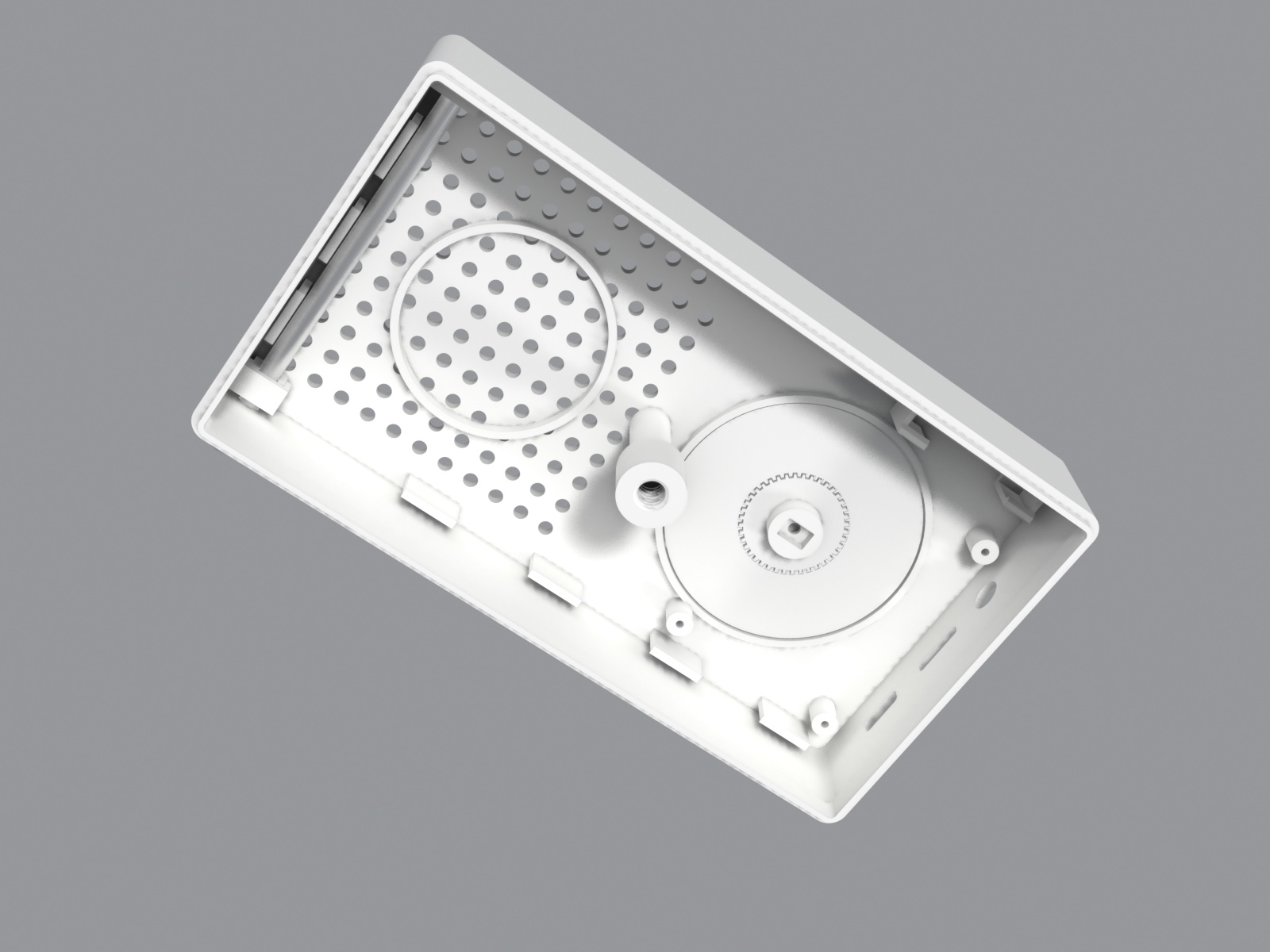

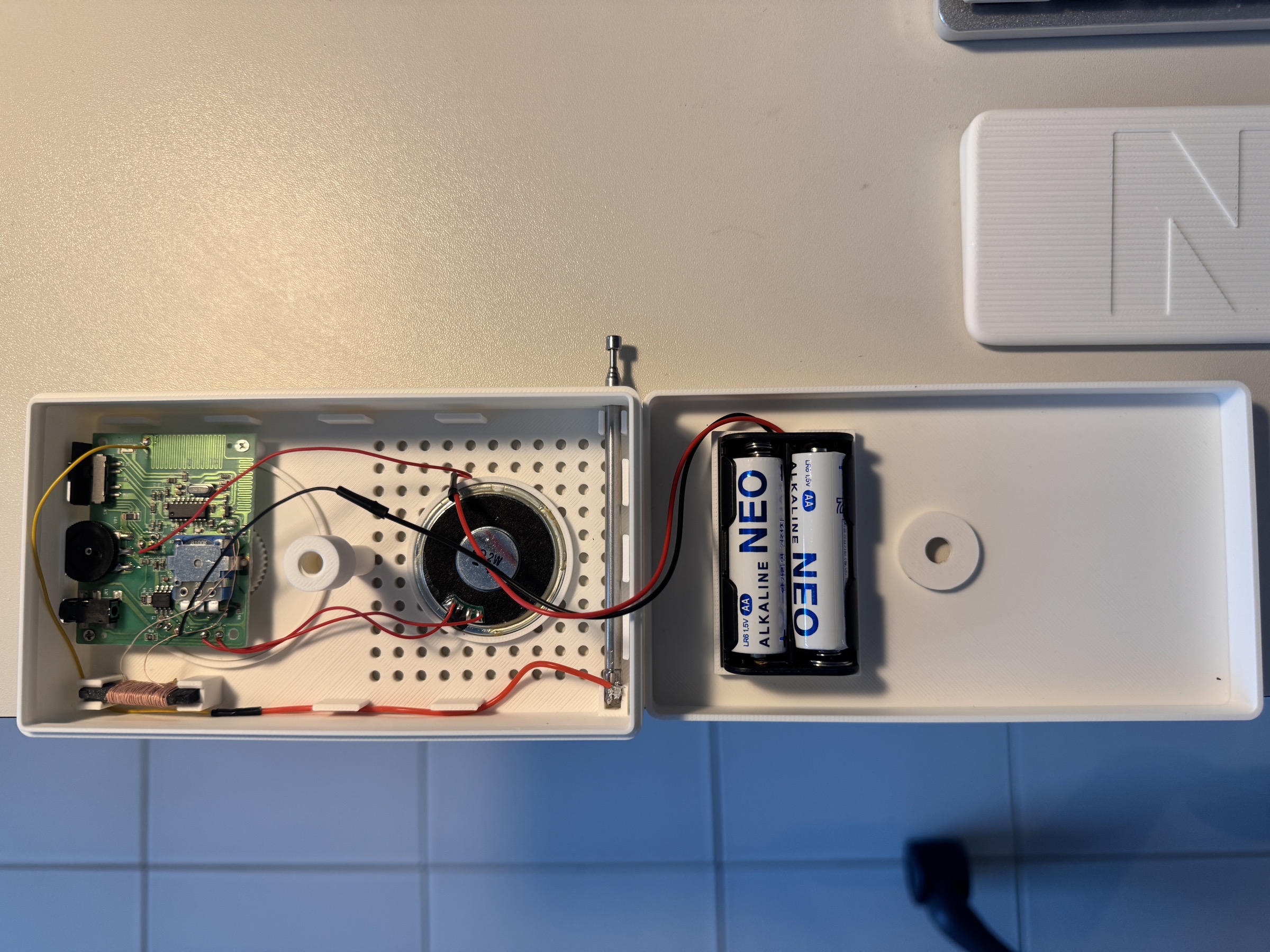

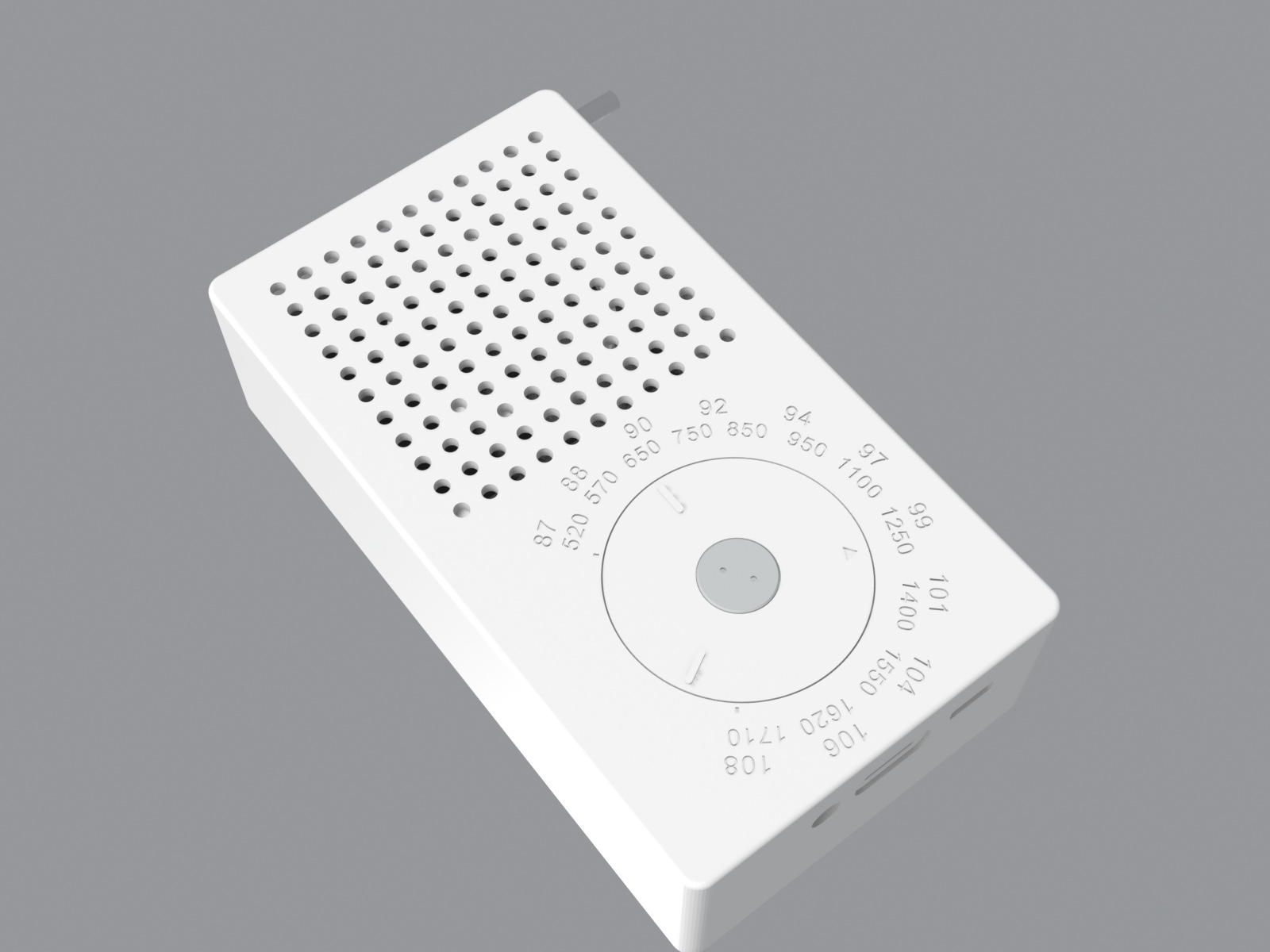

A small homage to Dieter Rams' Braun T3 pocket radio (1958). Same proportions (150 × 83 × 41 mm), 11 × 11 speaker grille, round tuning dial with an engraved scale and the BRAUN logo on the back — rebuilt around the electronics of an inexpensive AM/FM pocket radio from AliExpress. A restoration and design study; not affiliated with Braun.Parts to buyAM/FM pocket radio (donor electronics: PCB with rotor-type tuning, speaker Ø39 × 5 mm, ferrite bar 30 × 8 × 3 mm) — (I used the black one; a white version is also sold)Coin screw 1/4"-20, head Ø14 × 2 mm, thread 11 mm (camera quick-release screw) — × AA battery holder with leads, 59 × 33 × 15 mm — antenna — thickest tube Ø4.3 mm × ~90 mm, tip knob Ø4.9 mm, about 100 mm collapsedThin wire, soldering iron, double-sided tapeWhat makes it workThe di…
