First? Functional printable switch for keyboard (Cherry MX based)
Source: Thingiverse by boreack
The First? Functional printable switch for keyboard (Cherry MX based) is a free printable 3D model from Thingiverse by boreack. ENGLISH ======== While I'm waiting some switches to arrive, I decided to prins some for test purpose, but dont found any in thingiverse, only a non functional switch (I took some. You can download the STL file from the original listing below and print it at home.
About this model

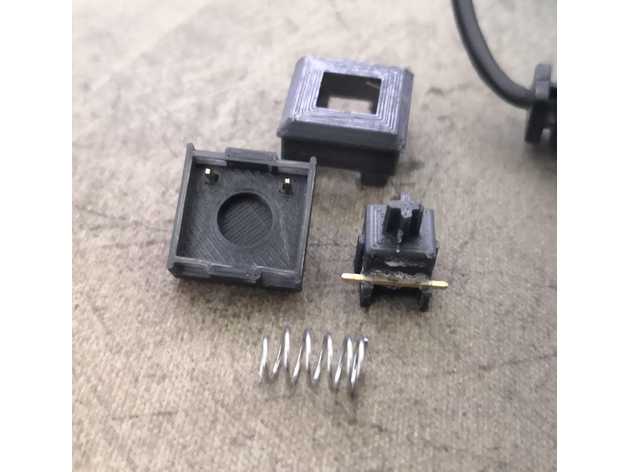

ENGLISH ======== While I'm waiting some switches to arrive, I decided to prins some for test purpose, but dont found any in thingiverse, only a non functional switch (I took some parts of the code, so there the remix). The body has 14mm square like a Cherry MX Switch, and the top cross is compatible with Cherry MX KeyCaps. If don't exist, made it! After a lot of failures, here one that work. I test it and the force of the spring was too strong, so the main parts are glued together. Apart of the 3d model, you will need 2 more things: - 1 Spring with 5.5mm diameter (adjustable in .scad file) - 3 pines for PCB, protoboards, etc. 0.65mm squared. It's a little tricky to get all working, but it works!. Funny to have a cheap smasheable switch on a one button Leonardo macro keyboard, for example. …
Frequently asked questions
- Is this 3D model free to download?
- Yes. First? Functional printable switch for keyboard (Cherry MX based) is free to download from Thingiverse. Open it in the free Thinger app, or use the "Download from Thingiverse" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by Thingiverse, not by Thinger. We link you directly to the original listing by boreack.
- Who made this model?
- Designed by boreack, published on Thingiverse. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
