Mitutoyo Dial Indicator Case (2046AB etc.)
Source: MakerWorld by AzaZPPL
The Mitutoyo Dial Indicator Case (2046AB etc.) is a free printable 3D model from MakerWorld by AzaZPPL. Dial Indicator Case with Push-Button Latch – Mitutoyo 2046ABA snug, fully 3D-printed case for the Mitutoyo 2046AB flat-back dial indicator. You can download the STL file from the original listing below and print it at home.
About this model

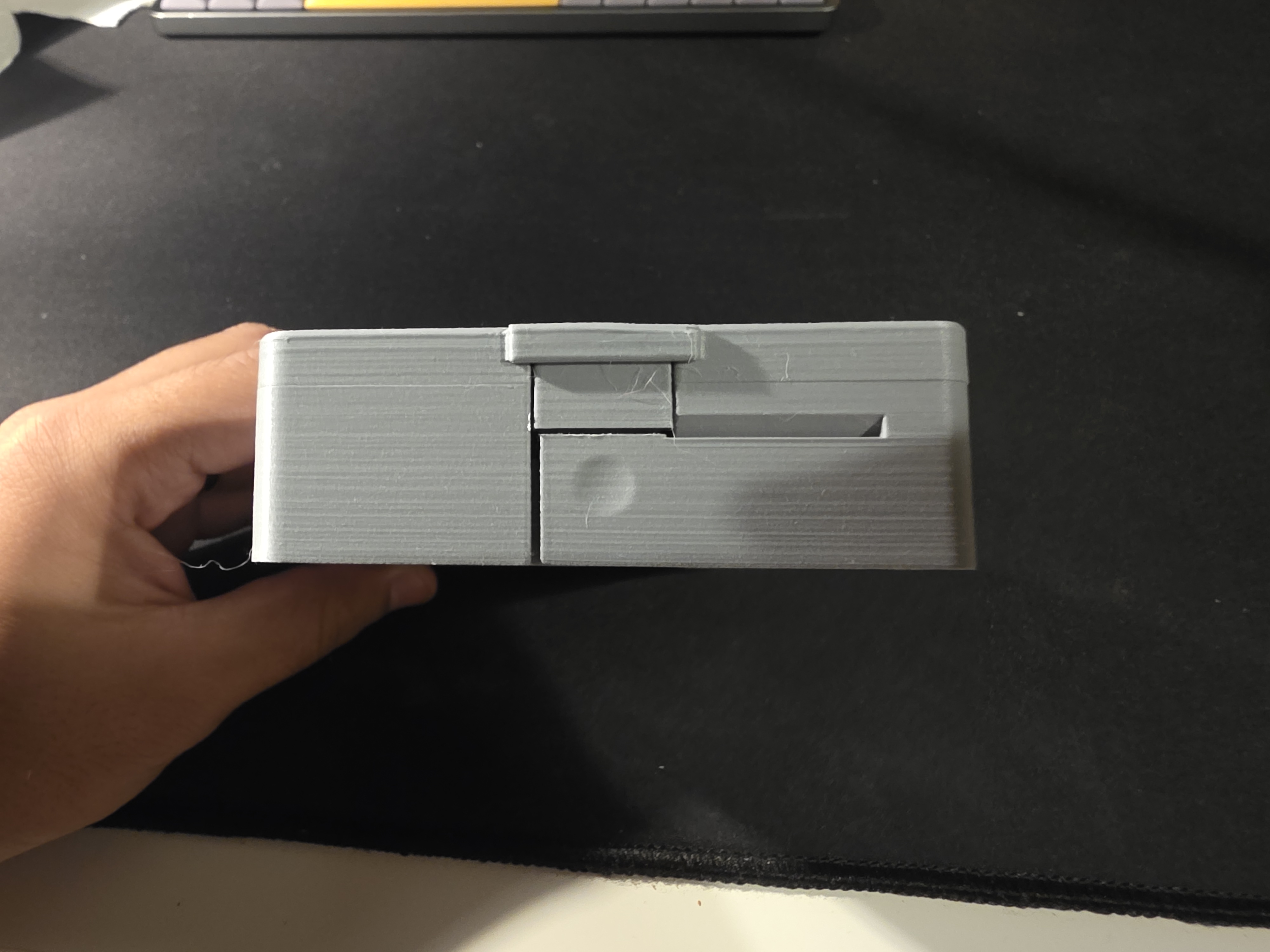

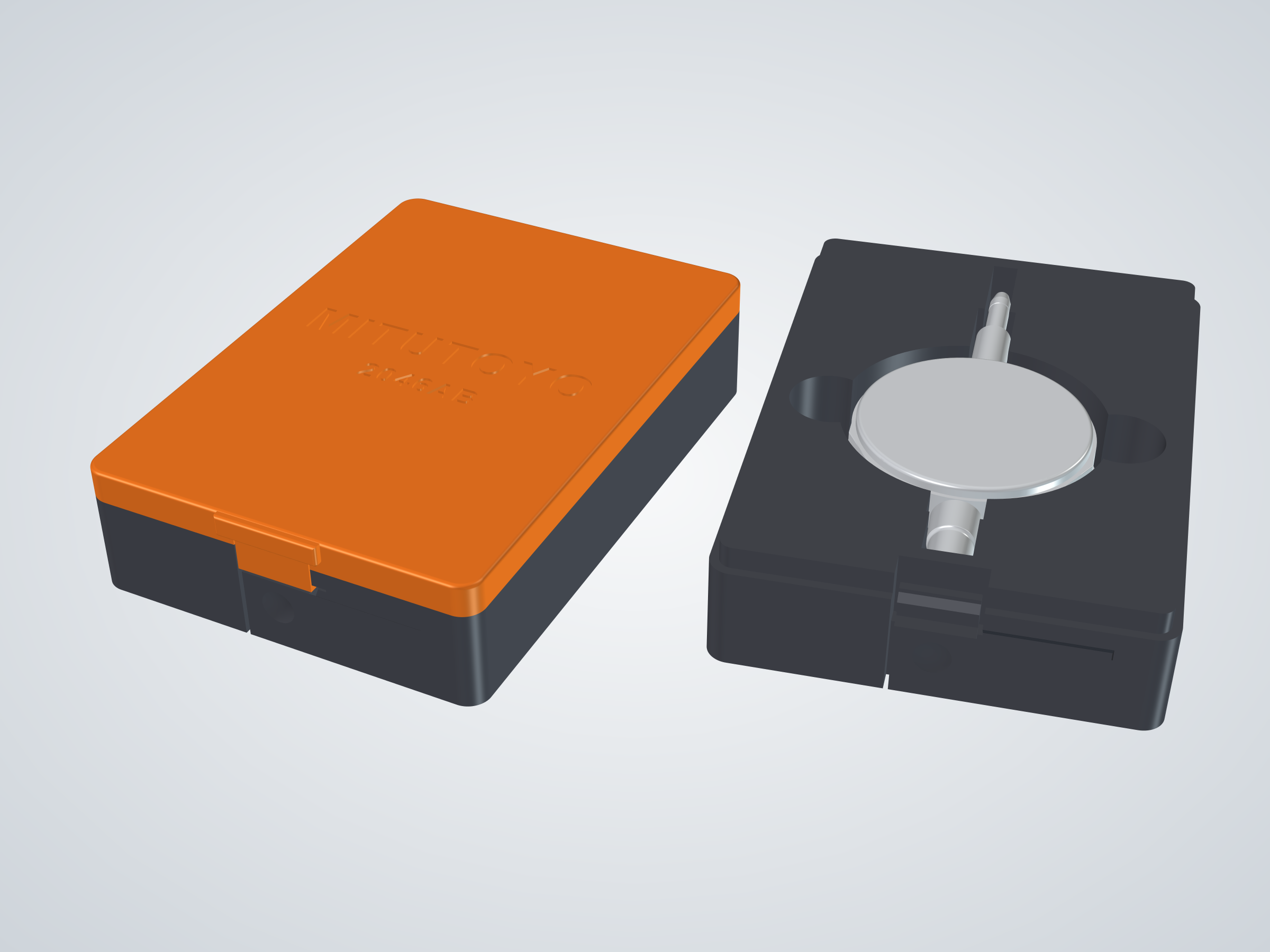

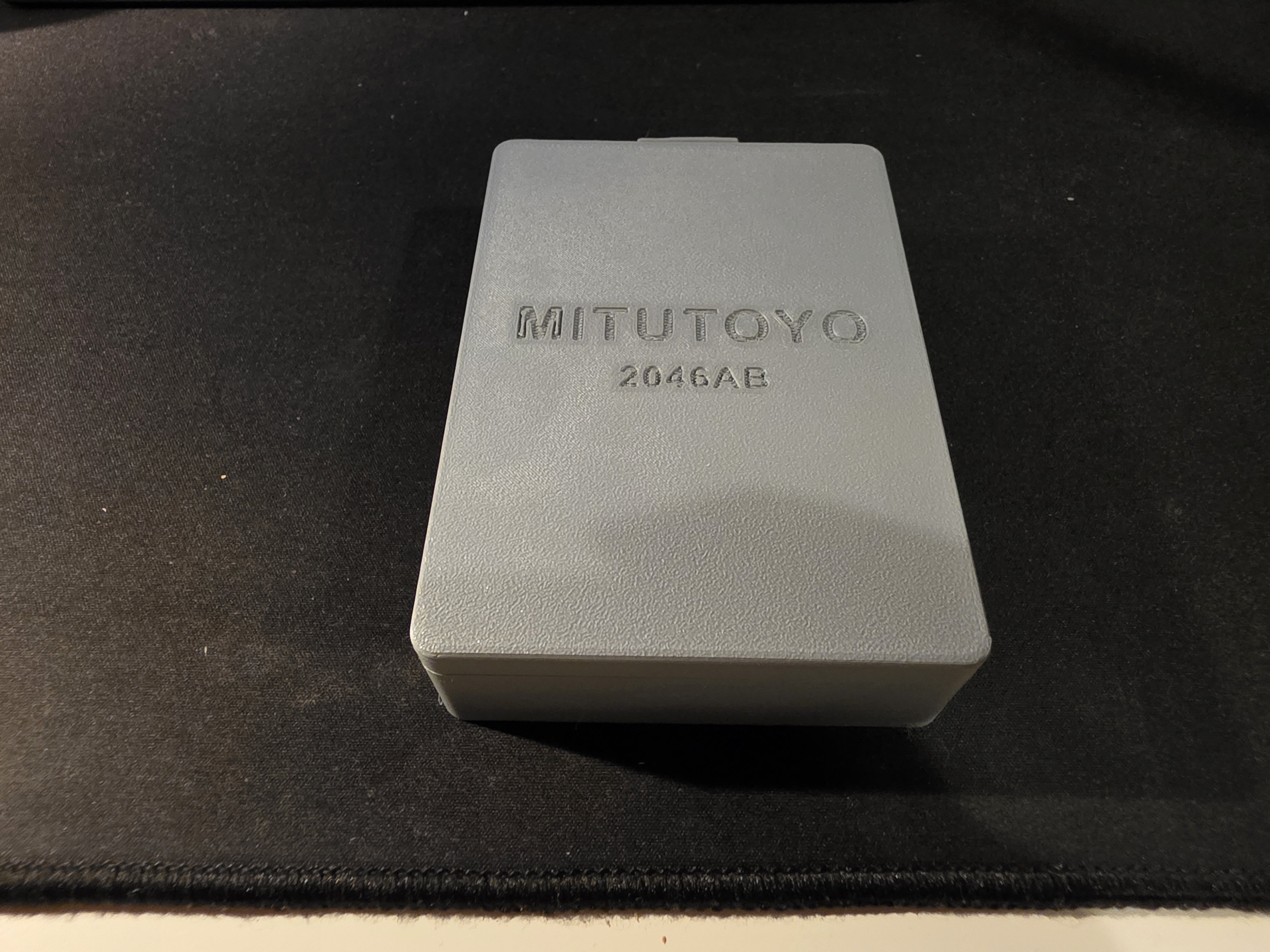

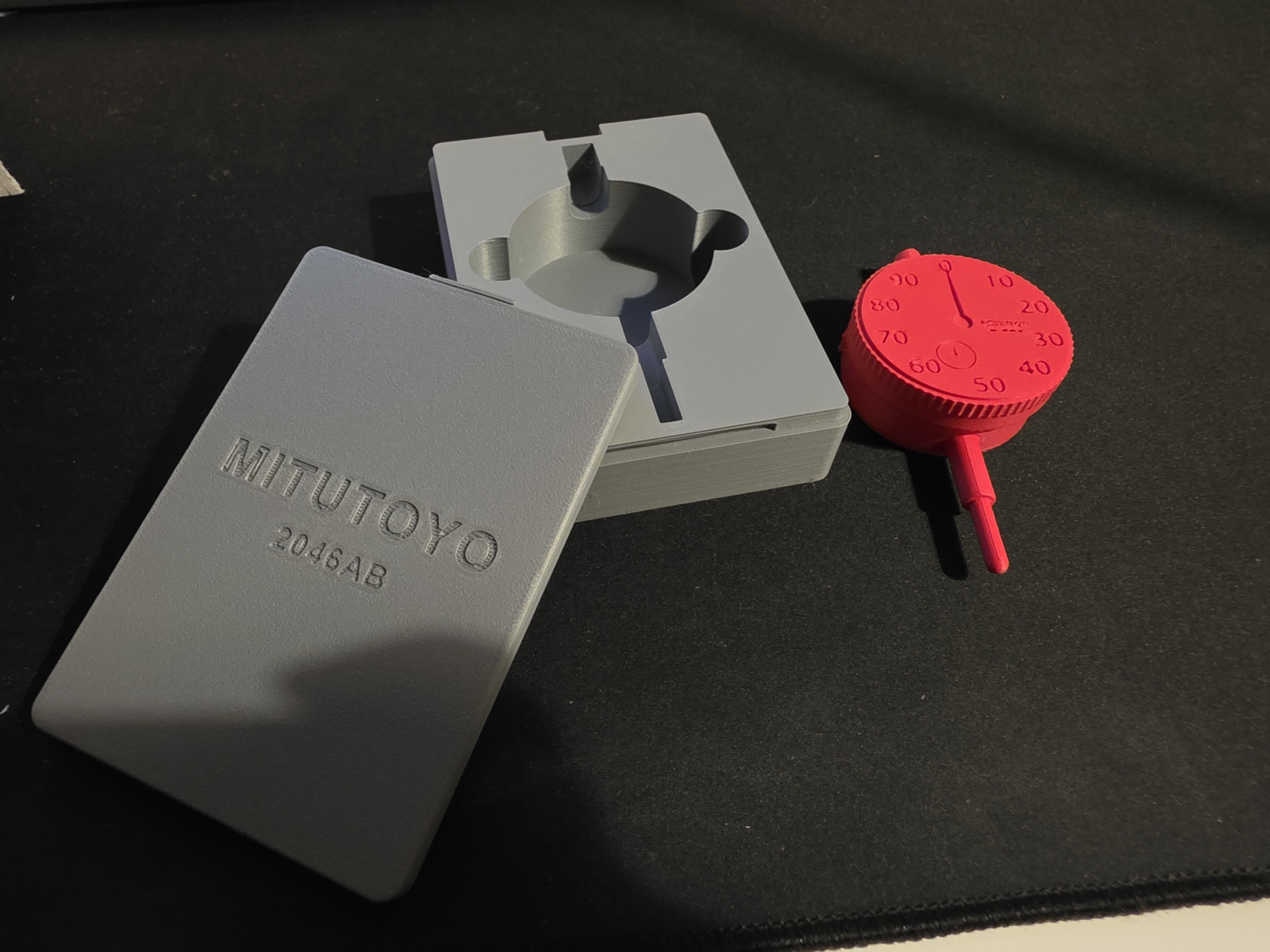

Dial Indicator Case with Push-Button Latch – Mitutoyo 2046ABA snug, fully 3D-printed case for the Mitutoyo 2046AB flat-back dial indicator. The gauge sits in a form-fitted pocket, and the lid locks with a one-hand push-button latch. Press the lid down and it clicks shut. It stays shut until you press the button.FeaturesPush-button latch: closes by itself when you press the lid down and opens with a light press of the thumb button. The catch faces are angled, so pulling on the lid makes it hold tighter instead of popping open.Durable spring arm: it flexes along the print layers rather than across them, so it won't snap after repeated use.Form-fitted pocket: shaped to the gauge body, stem and sleeve with 0.3 mm clearance. Two finger scoops let you lift the gauge out easily.Tilt-in lid: a lip…
Frequently asked questions
- Is this 3D model free to download?
- Yes. Mitutoyo Dial Indicator Case (2046AB etc.) is free to download from MakerWorld. Open it in the free Thinger app, or use the "Download from MakerWorld" link above to open the original listing.
- Where is the STL hosted?
- The download is hosted by MakerWorld, not by Thinger. We link you directly to the original listing by AzaZPPL.
- Who made this model?
- Designed by AzaZPPL, published on MakerWorld. Please credit the creator when sharing your print online.
- Can I print this at home?
- Yes. This model is intended for home FDM and resin 3D printers. Check the original listing for suggested print settings like layer height and supports.
