Cleat Drawers - French Cleat Screw Drawer Unit
Source: MakerWorld by heyoh
The Cleat Drawers - French Cleat Screw Drawer Unit is a free printable 3D model from MakerWorld by heyoh. A wall-hung drawer unit for screws, nails, anchors and small hardware. You can download the STL file from the original listing below and print it at home.
About this model

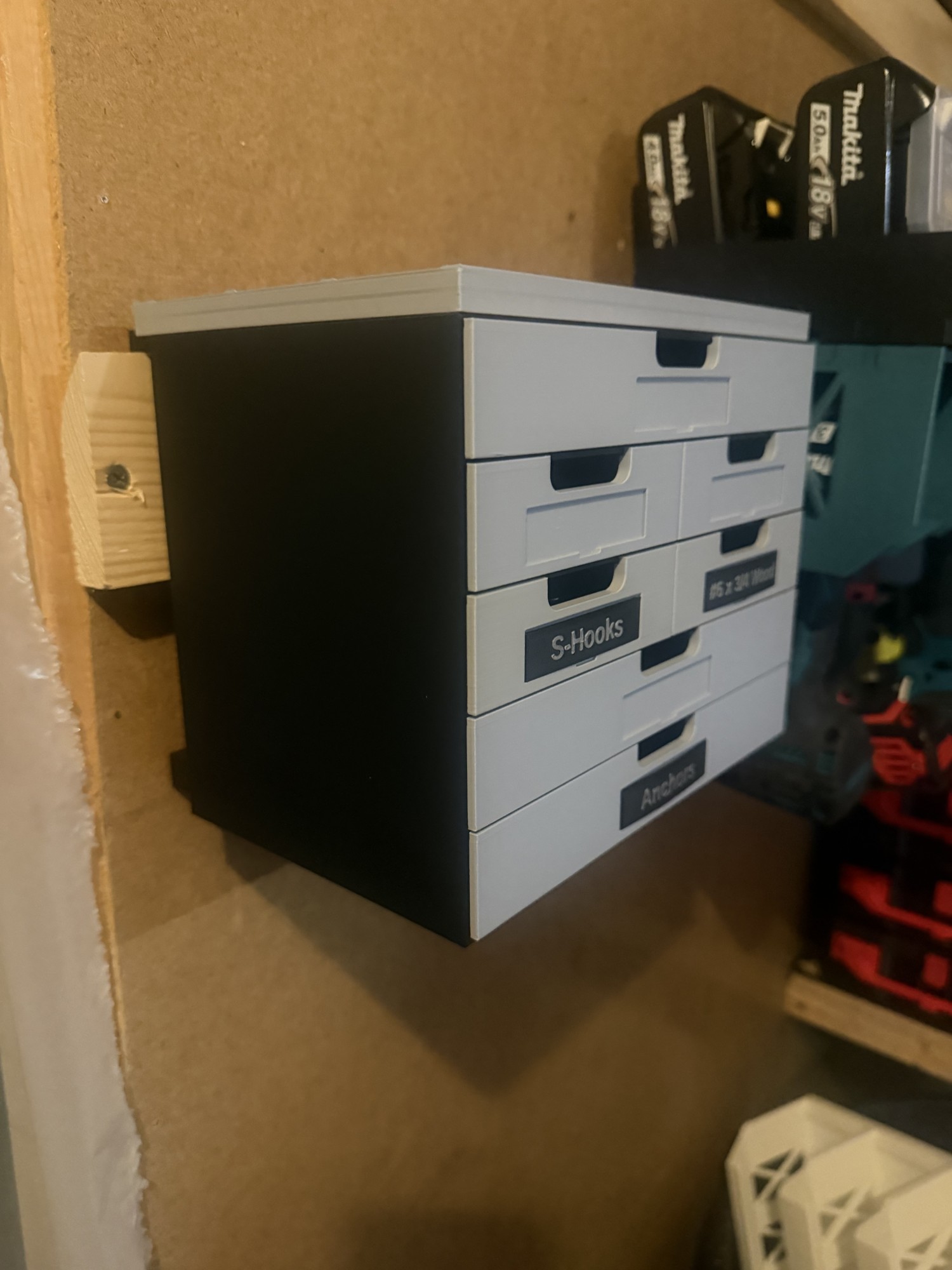

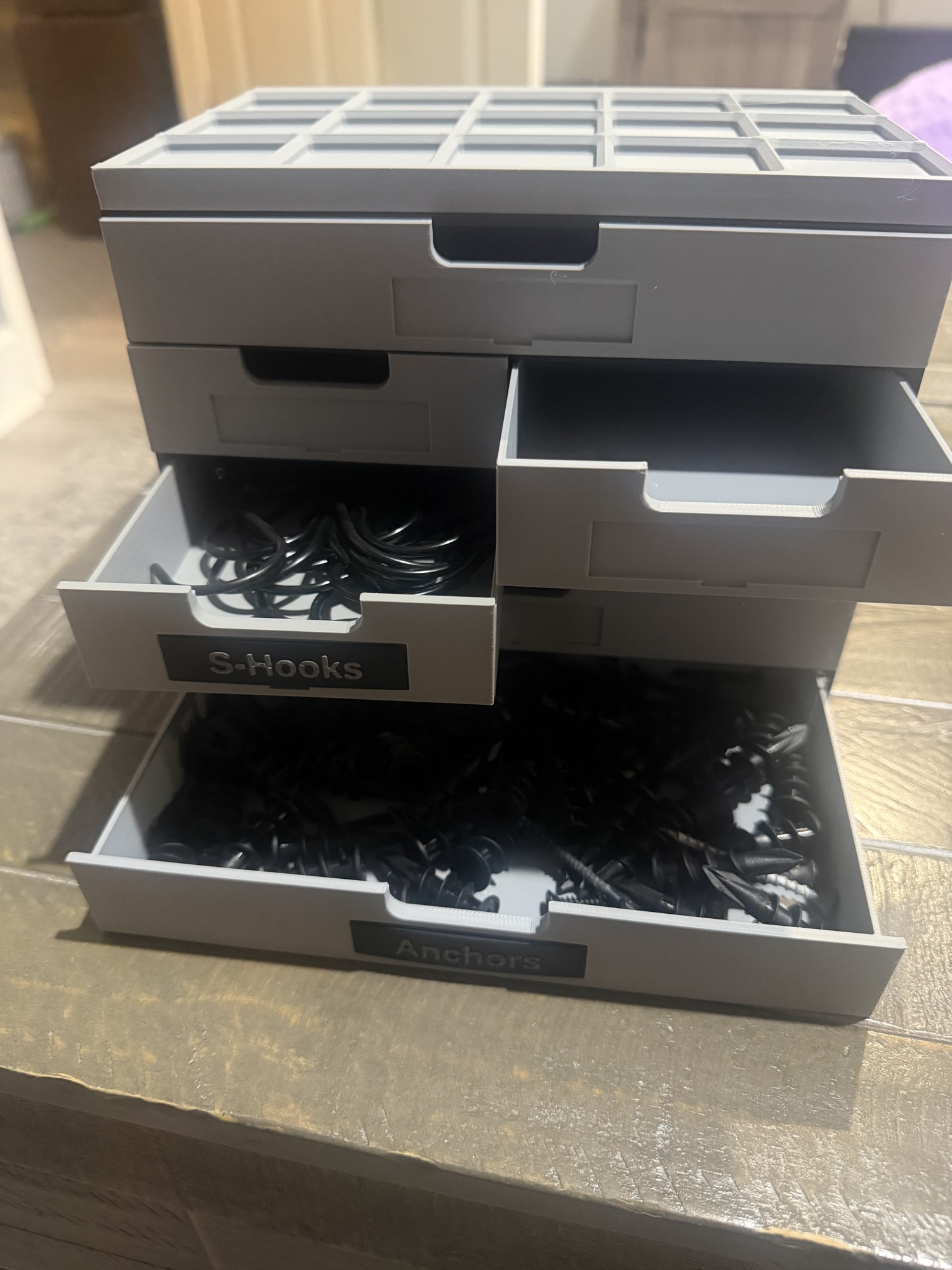

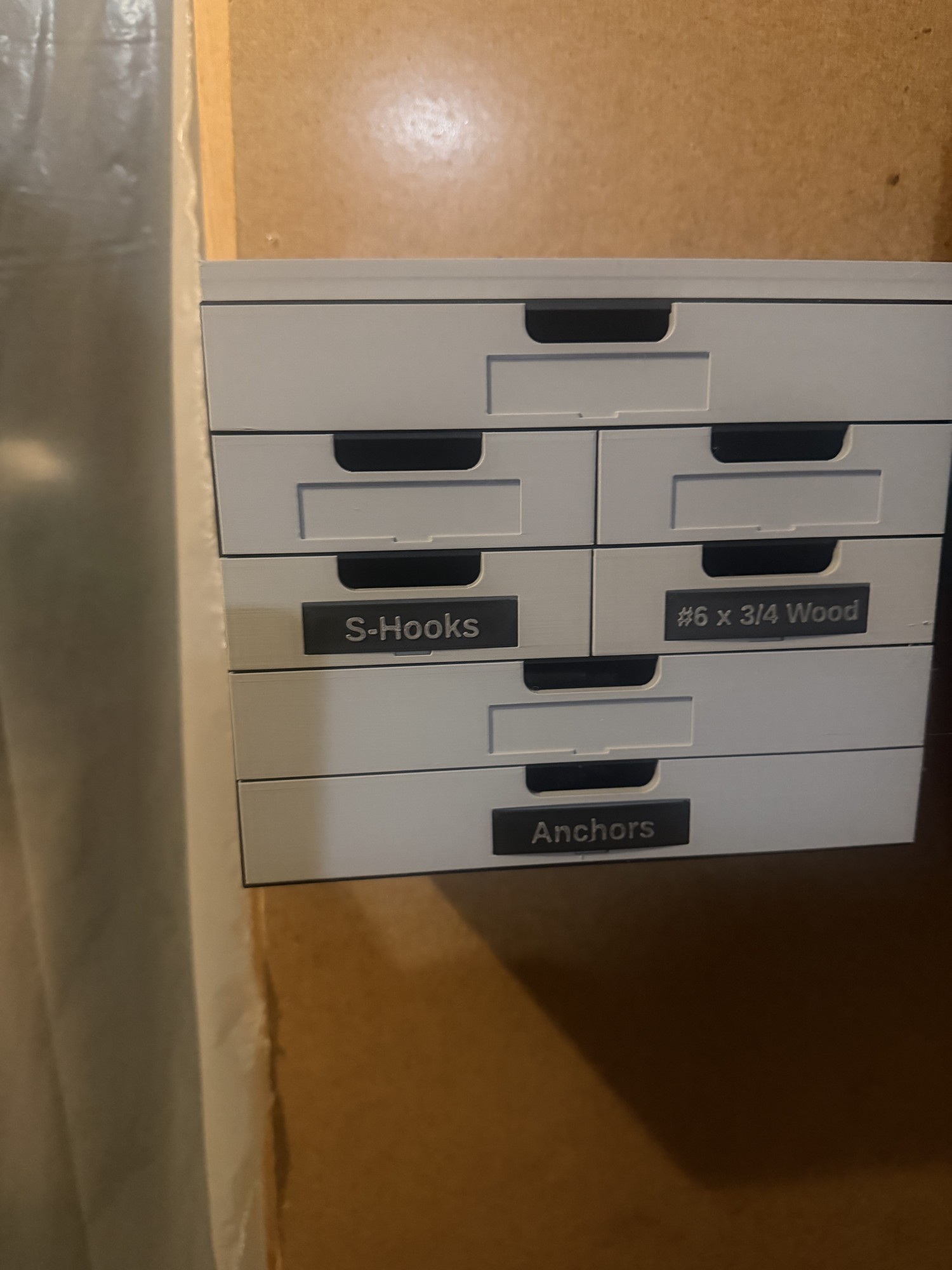

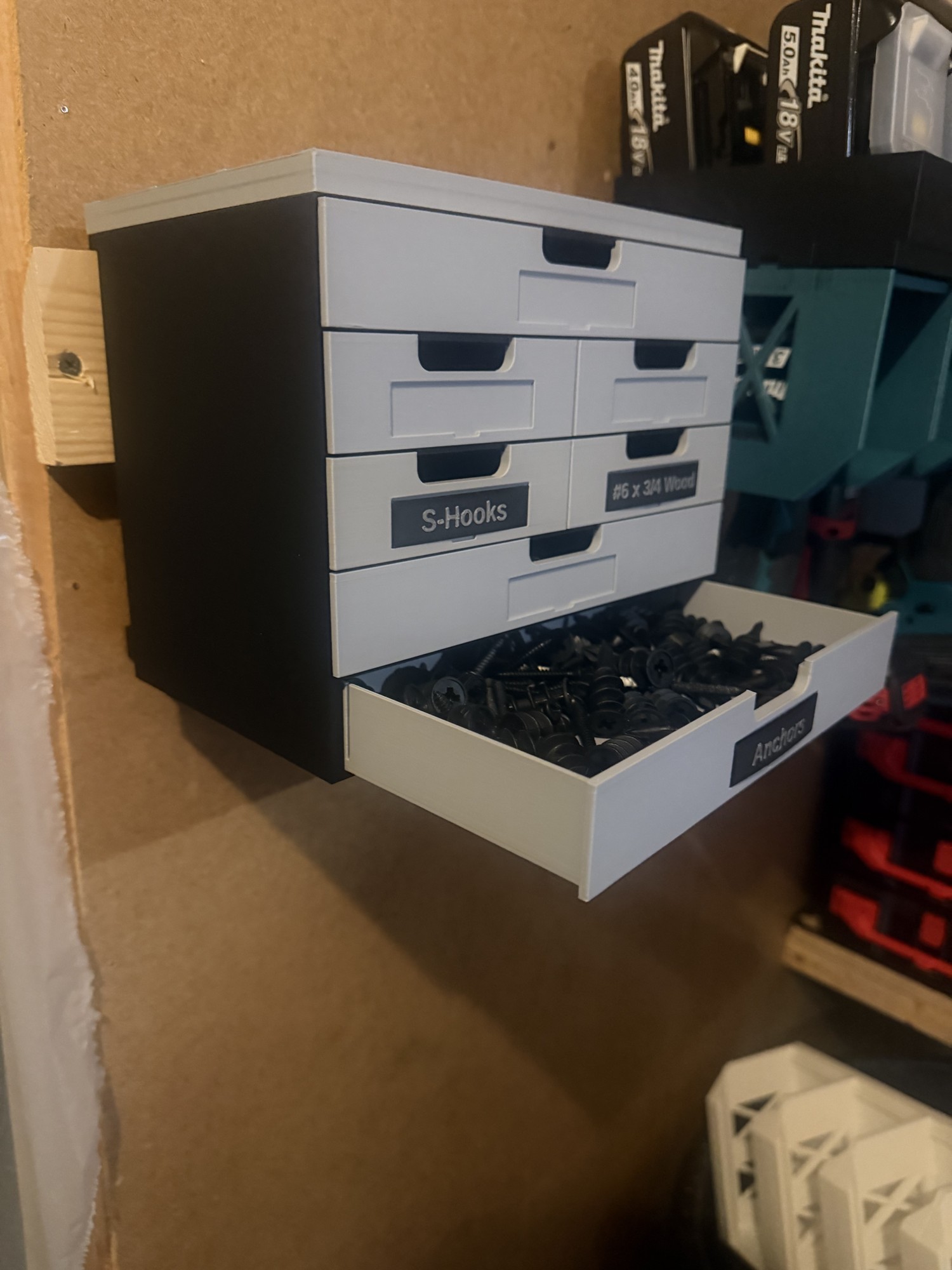

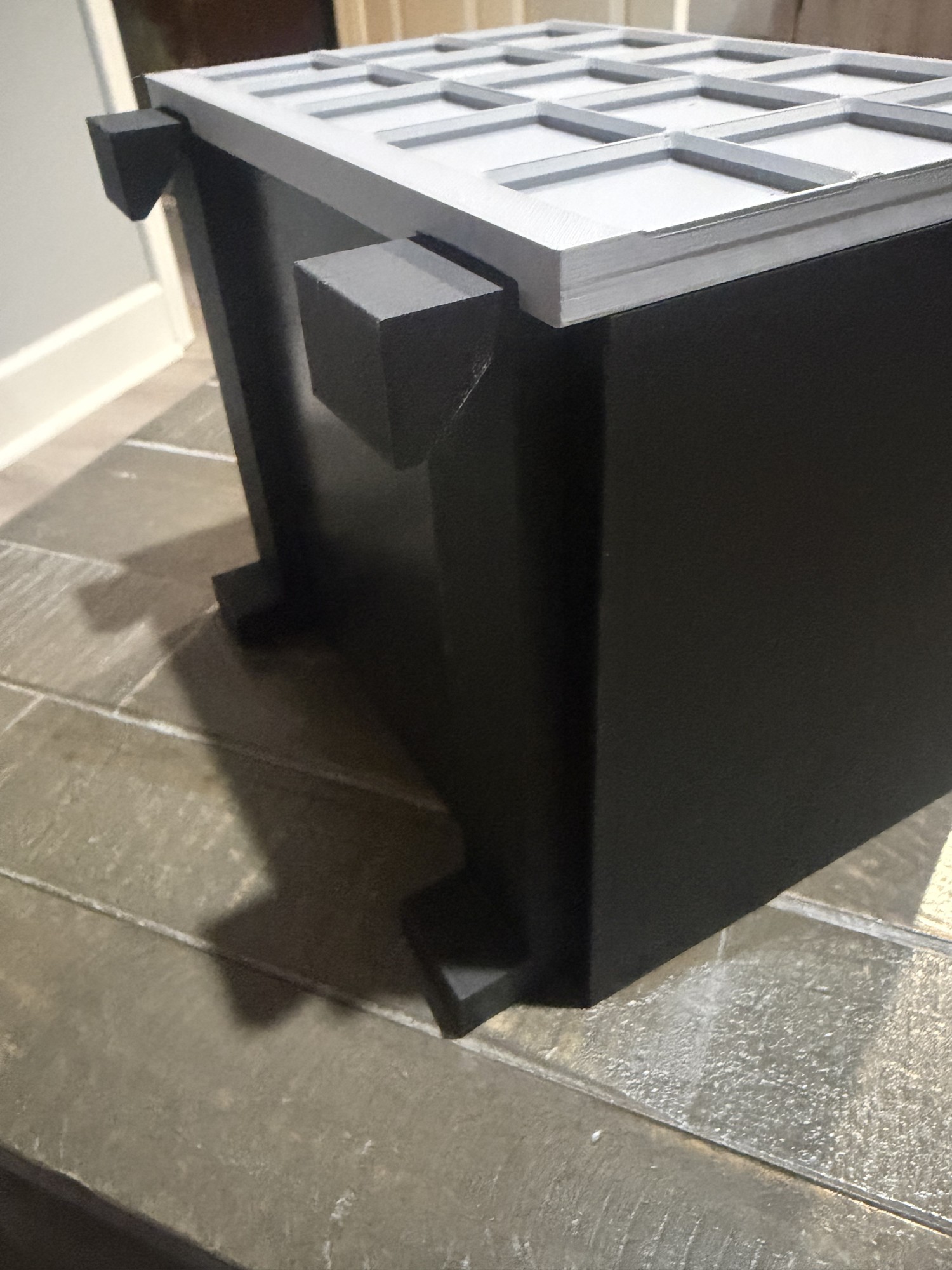

A wall-hung drawer unit for screws, nails, anchors and small hardware. It hangs on a standard 45° French cleat with no hardware anywhere. Five shallow drawers, 210 mm wide (5 × 42 mm Gridfinity pitch), with an optional Gridfinity deck on top.FeaturesTool-free hanging: two printed hangers sit on your cleat; the housing drops onto them on half-dovetail rails (flared mouth, self-centring) and lifts straight off.Drawers with a stop: a flexing detent keeps drawers from pulling out (max extension 91 mm). Drawers go in tab-end first.1 or 2 drawers per row: mix full-width drawers with left/right pairs in the same housing.Snap-in labels: every drawer front has a label pocket. Make your own in Customize: two colours, text auto-sizes to fit, one or two lines. Bow the tile slightly and snap it in.Opti…
